282-687

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, GROUND, 3 POSITIONS, 24 AWG, 10 AWG, 6 MM², CLAMP, 41 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

282-687

Active

WAGO Corporation

DIN RAIL MOUNT TERMINAL BLOCK, GROUND, 3 POSITIONS, 24 AWG, 10 AWG, 6 MM², CLAMP, 41 A

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	282-687

Color	Green, Yellow
Material - Insulation	Polyamide (PA66), Nylon 6/6
Number of Levels	1
Stripping Length [Max]	13 mm
Stripping Length [Min]	12 mm
Terminal - Width [y]	8 mm
Termination Style	Push In, Spring
Type	Ground, Earth
Wire Gauge or Range - AWG [Max]	24 AWG
Wire Gauge or Range - AWG [Min]	10 AWG
Wire Gauge or Range - mm² [Max]	6 mm²
Wire Gauge or Range - mm² [Min]	0.2 mm²

282 Series

Part	Terminal - Width [y]	Material - Insulation	Voltage - IEC	Termination Style	Disconnect Type	Number of Levels	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Current - IEC	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Type	Stripping Length [Min]	Stripping Length [Max]	Number of Positions	Color	For Use With/Related Products	Features	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Fuse Type [y]
WAGO Corporation 282-696	8 mm	Polyamide (PA66) Nylon 6/6	400 V	Push In Spring	Fuse	1	10 AWG	24 AWG	30 A	0.2 mm²	6 mm²	Disconnect	12 mm	13 mm	2	Gray
WAGO Corporation 282-681	8 mm	Polyamide (PA66) Nylon 6/6	800 V	Push In Spring		1	10 AWG	24 AWG	41 A	0.2 mm²	6 mm²	Feed Through	12 mm	13 mm		Gray
WAGO Corporation 282-328												End Plate					Terminal Blocks
WAGO Corporation 282-687	8 mm	Polyamide (PA66) Nylon 6/6		Push In Spring		1	10 AWG	24 AWG		0.2 mm²	6 mm²	Ground Earth	12 mm	13 mm		Green Yellow
WAGO Corporation 282-901	8 mm	Polyamide (PA66) Nylon 6/6	800 V	Push In Spring		1	10 AWG	24 AWG	41 A	0.2 mm²	6 mm²	Feed Through	12 mm	13 mm	2	Gray
WAGO Corporation 282-317												End Plate					Terminal Blocks
WAGO Corporation 282-333												End Plate					Terminal Blocks
WAGO Corporation 282-312												End Plate					Terminal Blocks
WAGO Corporation 282-698/281-434	8 mm	Polyamide (PA66) Nylon 6/6	400 V	Push In Spring	Fuse	1	10 AWG	24 AWG	30 A			Disconnect	12 mm	13 mm	2	Gray		LED Indicator	6 mm˛	0.2 mm˛
WAGO Corporation 282-128	13 mm		500 V	Screw	Fuse Screw Cap	1	10 AWG	24 AWG	10 A	0.2 mm²	6 mm²	Disconnect	12 mm	13 mm	2	Gray					0.25 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.11
		10	$ 13.30
		25	$ 12.54
		50	$ 11.94
		100	$ 11.71
		250	$ 10.20
		500	$ 9.82
		1000	$ 9.45
Newark	Each	1	$ 17.97
		25	$ 17.04
		100	$ 16.04
		250	$ 15.12
		500	$ 14.04

Description

General part information

282 Series

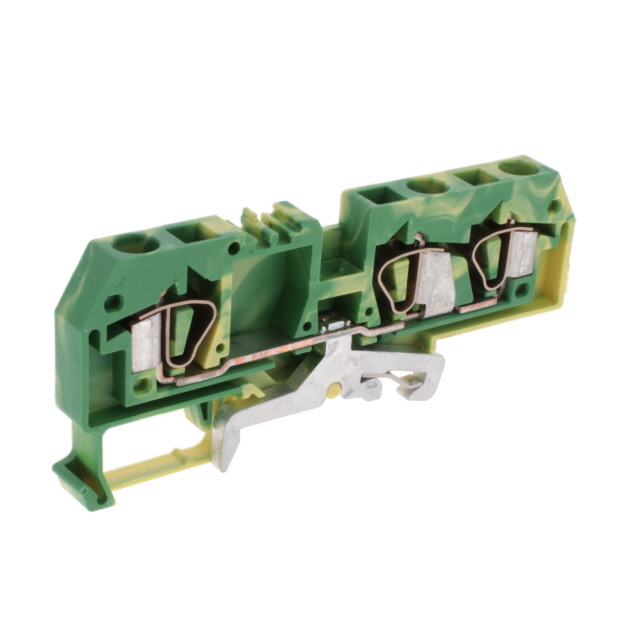

The 282-687 is a 3-conductor green-yellow Ground Terminal Block with center marking and front-entry wiring. This terminal block has polyamide 6.6 insulator and suitable for DIN 35 rail mounting. It accepts 24 to 10AWG wire size.
