DA15-HD-AL-TS

Active

Adam Tech

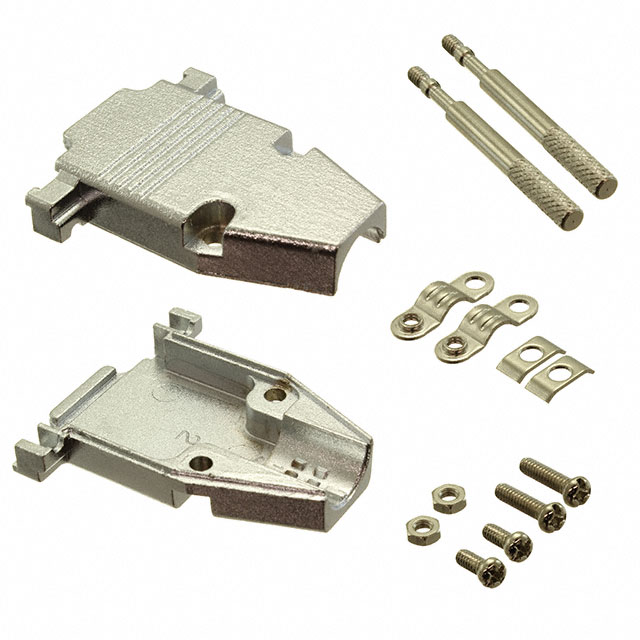

HOOD 180° 15 SHELL SIZE CHROMATE ALUMINUM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

DA15-HD-AL-TS

Active

Adam Tech

HOOD 180° 15 SHELL SIZE CHROMATE ALUMINUM

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DA15-HD-AL-TS

Accessory Type	Two Piece Backshell
Cable Exit	180 °
Cable Type	Round
Compatible D-Sub Size	15pos, HD26pos
Compatible Shell Size	A
Features	Mating Screws 4-40
Material	Aluminum Die Cast
Number of Positions	15
Plating	Chromate
Primary Material	Metal
Shielding	Shielded

DA15 Series

Part	Compatible Shell Size	Features	Shielding	Color	Number of Positions	Material	Cable Type	Primary Material	Accessory Type	Cable Exit	Compatible D-Sub Size	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Termination	Contact Material	Contact Finish Thickness	Current Rating (Amps)	Flange Feature	Contact Finish	Dielectric Material	Number of Rows	Voltage Rating	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Connector Style	Shell Size, Connector Layout	Material Flammability Rating	Shell Material, Finish	Contact Form	Plating
Adam Tech DA15-HD-PB-TS	A	Mating Screws 4-40	Unshielded	Black	15	Acrylonitrile Butadiene Styrene (ABS)	Round	Plastic	Two Piece Backshell	180 °	15pos HD26pos
Adam Tech DA15-PF-M1		Grounding Indents		Black	15							-55 °C	125 °C	Male Pins Plug	IDC Ribbon Cable	Phosphor Bronze	Flash	3 A	Housing/Shell (Unthreaded)	Gold	Polybutylene Terephthalate (PBT) Glass Filled	2	250 VAC	30 AWG	27.5 AWG	Free Hanging (In-Line)	D-Sub	2	UL94 V-0
Adam Tech DA15-SA-M2				Black	15							-65 ░C	125 °C	Receptacle Female Sockets	Solder	Copper Alloy	Flash		Housing/Shell (4-40)	Gold	Polybutylene Terephthalate (PBT) Glass Filled	2	250 VAC			Through Hole	D-Sub	2	UL94 V-0	Steel
Adam Tech DA15-SD				Black	15							-20 C	85 °C	Receptacle Female Sockets		Copper Alloy	Flash	3 A	Housing/Shell (Unthreaded)	Gold	Polybutylene Terephthalate (PBT) Glass Filled	2	250 VAC			Free Hanging (In-Line)	D-Sub	2	UL94 V-0		Stamped
Adam Tech DA15-HD-AL-TS	A	Mating Screws 4-40	Shielded		15	Aluminum Die Cast	Round	Metal	Two Piece Backshell	180 °	15pos HD26pos																					Chromate
Adam Tech DA15-PT-1-BL-JS		Board Lock Grounding Indents		Black	15									Male Pins Plug	Solder	Copper Alloy	Flash	3 A	Board Side (4-40) Mating Side Female Screwlock (4-40)	Gold	Polybutylene Terephthalate (PBT) Glass Filled	2	250 VAC			Through Hole	D-Sub	2	UL94 V-0
Adam Tech DA15-ST-2				Black	15							-55 °C	125 °C	Receptacle Female Sockets	Wire Wrap	Brass	Flash	5 A	Housing/Shell (4-40)	Gold	Thermoplastic Glass Filled	2	600 V			Through Hole	D-Sub	2	UL94 V-0	Nickel Plated Steel
Adam Tech DA15-PT-2		Grounding Indents		Black	15							-55 °C	125 °C	Male Pins Plug	Wire Wrap	Brass	Flash	5 A	Housing/Shell (4-40)	Gold	Thermoplastic Glass Filled	2	600 V			Through Hole	D-Sub	2	UL94 V-0	Nickel Plated Steel
Adam Tech DA15-HD-PN-TS	A	Mating Screws 4-40	Shielded	Silver	15	Acrylonitrile Butadiene Styrene (ABS)	Round	Plastic	Two Piece Backshell	180 °	15pos HD26pos																					Chrome
Adam Tech DA15-PD-SL		Grounding Indents		Black	15							-55 °C	105 ░C	Male Pins Plug		Copper Alloy	Flash	3 A	Cable Side	Gold	Polybutylene Terephthalate (PBT) Glass Filled	2	250 VAC			Free Hanging (In-Line)	D-Sub	2	UL94 V-0		Stamped
