DA15-PT-2

Active

Adam Tech

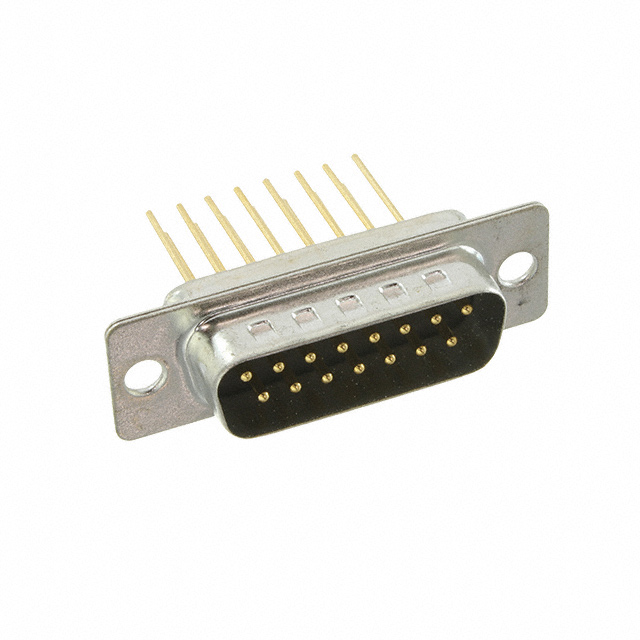

CONN D-SUB PLUG 15POS VERT WW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

DA15-PT-2

Active

Adam Tech

CONN D-SUB PLUG 15POS VERT WW

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DA15-PT-2

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Current Rating (Amps)	5 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Termination	Wire Wrap
Voltage Rating	600 V

DA15 Series

Part	Compatible Shell Size	Features	Shielding	Color	Number of Positions	Material	Cable Type	Primary Material	Accessory Type	Cable Exit	Compatible D-Sub Size	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Termination	Contact Material	Contact Finish Thickness	Current Rating (Amps)	Flange Feature	Contact Finish	Dielectric Material	Number of Rows	Voltage Rating	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Connector Style	Shell Size, Connector Layout	Material Flammability Rating	Shell Material, Finish	Contact Form	Plating
Adam Tech DA15-HD-PB-TS	A	Mating Screws 4-40	Unshielded	Black	15	Acrylonitrile Butadiene Styrene (ABS)	Round	Plastic	Two Piece Backshell	180 °	15pos HD26pos
Adam Tech DA15-PF-M1		Grounding Indents		Black	15							-55 °C	125 °C	Male Pins Plug	IDC Ribbon Cable	Phosphor Bronze	Flash	3 A	Housing/Shell (Unthreaded)	Gold	Polybutylene Terephthalate (PBT) Glass Filled	2	250 VAC	30 AWG	27.5 AWG	Free Hanging (In-Line)	D-Sub	2	UL94 V-0
Adam Tech DA15-SA-M2				Black	15							-65 ░C	125 °C	Receptacle Female Sockets	Solder	Copper Alloy	Flash		Housing/Shell (4-40)	Gold	Polybutylene Terephthalate (PBT) Glass Filled	2	250 VAC			Through Hole	D-Sub	2	UL94 V-0	Steel
Adam Tech DA15-SD				Black	15							-20 C	85 °C	Receptacle Female Sockets		Copper Alloy	Flash	3 A	Housing/Shell (Unthreaded)	Gold	Polybutylene Terephthalate (PBT) Glass Filled	2	250 VAC			Free Hanging (In-Line)	D-Sub	2	UL94 V-0		Stamped
Adam Tech DA15-HD-AL-TS	A	Mating Screws 4-40	Shielded		15	Aluminum Die Cast	Round	Metal	Two Piece Backshell	180 °	15pos HD26pos																					Chromate
Adam Tech DA15-PT-1-BL-JS		Board Lock Grounding Indents		Black	15									Male Pins Plug	Solder	Copper Alloy	Flash	3 A	Board Side (4-40) Mating Side Female Screwlock (4-40)	Gold	Polybutylene Terephthalate (PBT) Glass Filled	2	250 VAC			Through Hole	D-Sub	2	UL94 V-0
Adam Tech DA15-ST-2				Black	15							-55 °C	125 °C	Receptacle Female Sockets	Wire Wrap	Brass	Flash	5 A	Housing/Shell (4-40)	Gold	Thermoplastic Glass Filled	2	600 V			Through Hole	D-Sub	2	UL94 V-0	Nickel Plated Steel
Adam Tech DA15-PT-2		Grounding Indents		Black	15							-55 °C	125 °C	Male Pins Plug	Wire Wrap	Brass	Flash	5 A	Housing/Shell (4-40)	Gold	Thermoplastic Glass Filled	2	600 V			Through Hole	D-Sub	2	UL94 V-0	Nickel Plated Steel
Adam Tech DA15-HD-PN-TS	A	Mating Screws 4-40	Shielded	Silver	15	Acrylonitrile Butadiene Styrene (ABS)	Round	Plastic	Two Piece Backshell	180 °	15pos HD26pos																					Chrome
Adam Tech DA15-PD-SL		Grounding Indents		Black	15							-55 °C	105 ░C	Male Pins Plug		Copper Alloy	Flash	3 A	Cable Side	Gold	Polybutylene Terephthalate (PBT) Glass Filled	2	250 VAC			Free Hanging (In-Line)	D-Sub	2	UL94 V-0		Stamped
