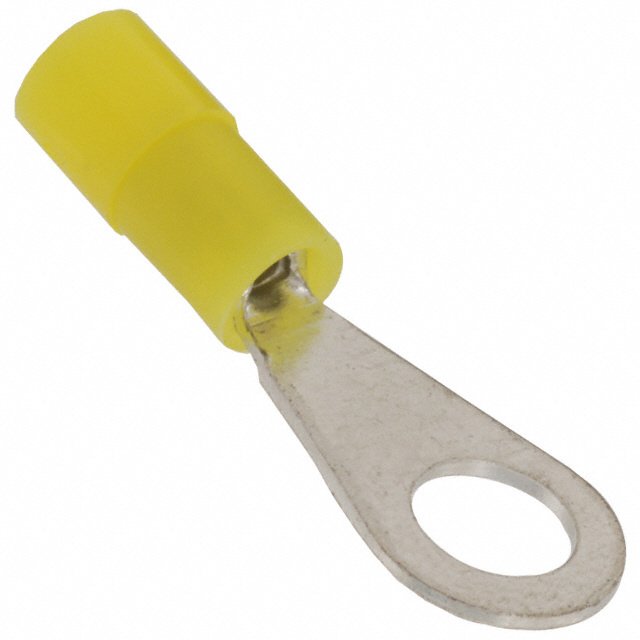

MN24-6RK

Active

3M (TC)

NYLON INSULATED W/INSULATION GRIP RING TONGUE TERMINAL

Search across all available documentation for this part.

Active

3M (TC)

NYLON INSULATED W/INSULATION GRIP RING TONGUE TERMINAL

Technical Specifications

Parameters and characteristics for this part

Specification	MN24-6RK

Color	Yellow
Contact Finish	Tin
Contact Material	Copper
Features	Brazed Seam
Insulation	Insulated
Insulation Diameter [diameter]	0.09 in
Insulation Diameter [diameter]	2.29 mm
Material - Insulation	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	6 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.02 in
Thickness	0.51 mm
Width - Outer Edges [y]	6.1 mm
Width - Outer Edges [y]	0.24 in
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	22 AWG

Part	Features	Terminal Type	Stud/Tab Size	Thickness	Thickness	Contact Material	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Width - Outer Edges	Width - Outer Edges [y]	Contact Finish	Termination	Insulation	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Color	Material - Insulation	Width - Outer Edges [y]
3M (TC) MN24-10RK	Brazed Seam	Circular	10 Stud	0.02 in	0.51 mm	Copper	0.09 in	2.29 mm	7.87 mm	0.31 in	Tin	Crimp	Insulated	Free Hanging (In-Line)	24 AWG	26 AWG	Yellow	Nylon Polyamide (PA)
3M (TC) MN24-2RK	Brazed Seam	Circular	2 Stud	0.02 in	0.51 mm	Copper	0.09 in	2.29 mm		0.2 in	Tin	Crimp	Insulated	Free Hanging (In-Line)	24 AWG	26 AWG	Yellow	Nylon Polyamide (PA)	5.08 mm
3M (TC) MN24-6RK	Brazed Seam	Circular	6 Stud	0.02 in	0.51 mm	Copper	0.09 in	2.29 mm		0.24 in	Tin	Crimp	Insulated	Free Hanging (In-Line)	22 AWG	26 AWG	Yellow	Nylon Polyamide (PA)	6.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ring Terminal Connector 6 Stud Circular 22-26 AWG Crimp
