MN24-10RK

Obsolete

3M (TC)

CONN RING CIRC 24-26AWG #10

Search across all available documentation for this part.

Obsolete

3M (TC)

CONN RING CIRC 24-26AWG #10

Technical Specifications

Parameters and characteristics for this part

Specification	MN24-10RK

Color	Yellow
Contact Finish	Tin
Contact Material	Copper
Features	Brazed Seam
Insulation	Insulated
Insulation Diameter [diameter]	0.09 in
Insulation Diameter [diameter]	2.29 mm
Material - Insulation	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	10 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.02 in
Thickness	0.51 mm
Width - Outer Edges	7.87 mm
Width - Outer Edges [y]	0.31 in
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	24 AWG

Part	Features	Terminal Type	Stud/Tab Size	Thickness	Thickness	Contact Material	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Width - Outer Edges	Width - Outer Edges [y]	Contact Finish	Termination	Insulation	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Color	Material - Insulation	Width - Outer Edges [y]
3M (TC) MN24-10RK	Brazed Seam	Circular	10 Stud	0.02 in	0.51 mm	Copper	0.09 in	2.29 mm	7.87 mm	0.31 in	Tin	Crimp	Insulated	Free Hanging (In-Line)	24 AWG	26 AWG	Yellow	Nylon Polyamide (PA)
3M (TC) MN24-2RK	Brazed Seam	Circular	2 Stud	0.02 in	0.51 mm	Copper	0.09 in	2.29 mm		0.2 in	Tin	Crimp	Insulated	Free Hanging (In-Line)	24 AWG	26 AWG	Yellow	Nylon Polyamide (PA)	5.08 mm
3M (TC) MN24-6RK	Brazed Seam	Circular	6 Stud	0.02 in	0.51 mm	Copper	0.09 in	2.29 mm		0.24 in	Tin	Crimp	Insulated	Free Hanging (In-Line)	22 AWG	26 AWG	Yellow	Nylon Polyamide (PA)	6.1 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

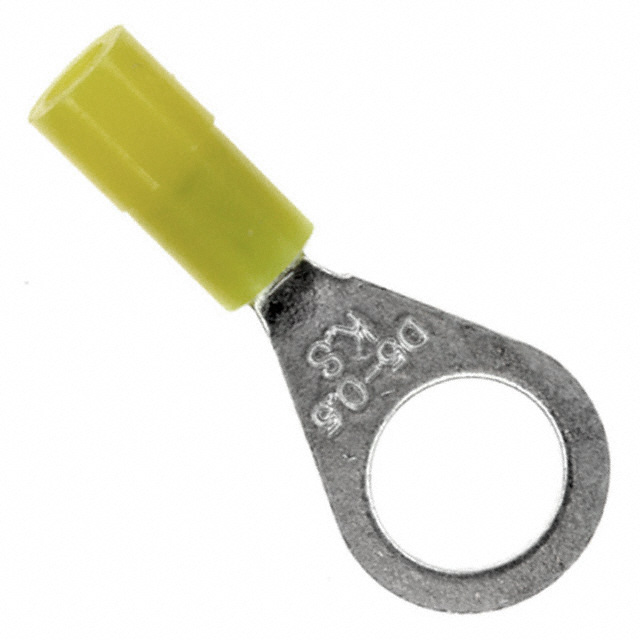

Ring Terminal Connector 10 Stud Circular 24-26 AWG Crimp
