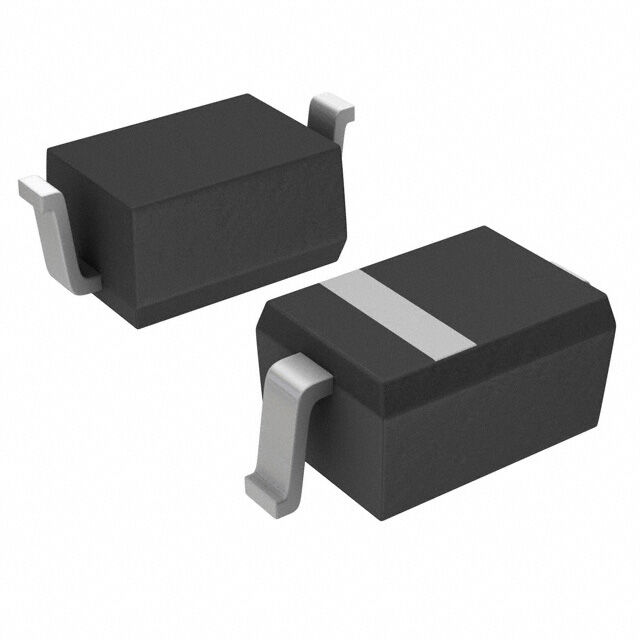

1N4148WS-HF

Active

Comchip Technology

DIODE GEN PURP 75V 150MA SOD323

Search across all available documentation for this part.

Active

Comchip Technology

DIODE GEN PURP 75V 150MA SOD323

Technical Specifications

Parameters and characteristics for this part

Specification	1N4148WS-HF

Capacitance @ Vr, F	2 pF
Current - Average Rectified (Io)	150 mA
Current - Reverse Leakage @ Vr	1 µA
Mounting Type	Surface Mount
Operating Temperature - Junction	125 °C
Package / Case	SOD-323, SC-76
Reverse Recovery Time (trr)	4 ns
Speed	Any Speed
Speed	200 mA
Supplier Device Package	SOD-323
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	75 V
Voltage - Forward (Vf) (Max) @ If [Max]	1.25 V

Part	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Speed	Speed	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Current - Reverse Leakage @ Vr	Technology	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If [Max]	Capacitance @ Vr, F	Reverse Recovery Time (trr)	Operating Temperature - Junction
Comchip Technology 1N4148-G	200 C	-65 C	Axial DO-204AH DO-35	Any Speed	200 mA	Through Hole	1 V	75 V	DO-35	5 µA	Standard	150 mA
Comchip Technology 1N4148WS-HF			SC-76 SOD-323	Any Speed	200 mA	Surface Mount		75 V	SOD-323	1 µA	Standard	150 mA	1.25 V	2 pF	4 ns	125 °C
Comchip Technology 1N4148W-HF			SOD-123	Any Speed	200 mA	Surface Mount	1.25 V	100 V	SOD-123	5 µA	Standard	150 mA		4 pF	4 ns	150 ¯C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 75 V 150mA Surface Mount SOD-323
