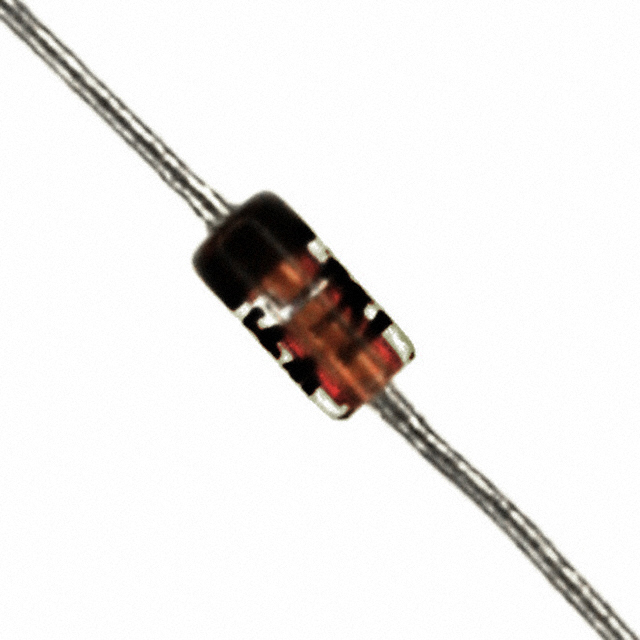

1N4148-G

Obsolete

Comchip Technology

DIODE SWITCHING 100V 0.15A 2-PIN DO-35 AMMO

Search across all available documentation for this part.

Obsolete

Comchip Technology

DIODE SWITCHING 100V 0.15A 2-PIN DO-35 AMMO

Technical Specifications

Parameters and characteristics for this part

Specification	1N4148-G

Current - Average Rectified (Io)	150 mA
Current - Reverse Leakage @ Vr	5 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	200 C
Operating Temperature - Junction [Min]	-65 C
Package / Case	Axial, DO-35, DO-204AH
Speed	Any Speed
Speed	200 mA
Supplier Device Package	DO-35
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	75 V
Voltage - Forward (Vf) (Max) @ If	1 V

Part	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Package / Case	Speed	Speed	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Current - Reverse Leakage @ Vr	Technology	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If [Max]	Capacitance @ Vr, F	Reverse Recovery Time (trr)	Operating Temperature - Junction
Comchip Technology 1N4148-G	200 C	-65 C	Axial DO-204AH DO-35	Any Speed	200 mA	Through Hole	1 V	75 V	DO-35	5 µA	Standard	150 mA
Comchip Technology 1N4148WS-HF			SC-76 SOD-323	Any Speed	200 mA	Surface Mount		75 V	SOD-323	1 µA	Standard	150 mA	1.25 V	2 pF	4 ns	125 °C
Comchip Technology 1N4148W-HF			SOD-123	Any Speed	200 mA	Surface Mount	1.25 V	100 V	SOD-123	5 µA	Standard	150 mA		4 pF	4 ns	150 ¯C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 75 V 150mA Through Hole DO-35
