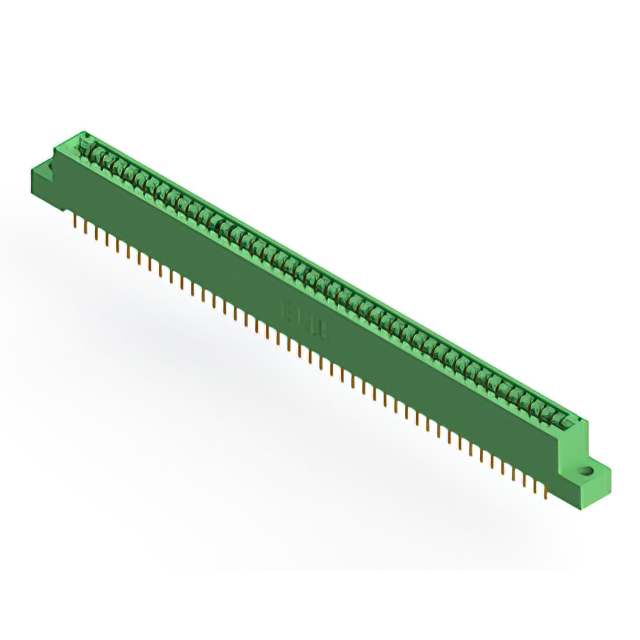

346-090-521-204

Active

EDAC Inc.

CARD EDGE CONNECTORS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

346-090-521-204

Active

EDAC Inc.

CARD EDGE CONNECTORS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	346-090-521-204

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	90
Number of Positions/Bay/Row [custom]	45
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

346-090 Series

...

Part	Mounting Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Termination	Card Type	Read Out	Termination Rows	Gender	Color	Contact Material	Contact Finish	Contact Type	Number of Rows	Number of Positions	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions/Bay/Row [custom]	Contact Finish Thickness	Contact Finish Thickness	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Flange Feature	Flange Feature
EDAC Inc. 346-090-541-803	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm	Wire Wrap	Non Specified - Dual Edge	Dual	2	Female	Green	Copper Alloy	Gold	Cantilever	2	90	Polyester Thermoplastic	-40 °C	105 ░C	45	10 Áin	0.25 Ám	2.95 mm	Floating Bobbin Top Mount Opening	0.116 in
EDAC Inc. 346-090-526-812	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm	Solder	Non Specified - Dual Edge	Dual	2	Female	Green	Copper Alloy	Gold	Cantilever	2	90	Polyester Thermoplastic	-40 °C	105 ░C	45	10 Áin	0.25 Ám		Side Mount Opening Unthreaded		3.25 mm	0.128 in
EDAC Inc. 346-090-526-202	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm	Solder	Non Specified - Dual Edge	Dual	2	Female	Green	Copper Alloy	Gold	Cantilever	2	90	Polyester Thermoplastic	-40 °C	105 ░C	45	10 Áin	0.25 Ám	3.25 mm	Flush Mount Top Opening Unthreaded	0.128 "
EDAC Inc. 346-090-540-201	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm	Wire Wrap	Non Specified - Dual Edge	Dual	2	Female	Green	Copper Alloy	Gold	Cantilever	2	90	Polyester Thermoplastic	-40 °C	105 ░C	45	10 Áin	0.25 Ám
EDAC Inc. 346-090-521-208	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm	Solder	Non Specified - Dual Edge	Dual	2	Female	Green	Copper Alloy	Gold	Cantilever	2	90	Polyester Thermoplastic	-40 °C	105 ░C	45	10 Áin	0.25 Ám		4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 346-090-558-212	Through Hole Right Angle	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm	Solder Wire Wrap	Non Specified - Dual Edge	Dual	2	Female	Green	Copper Alloy	Gold	Cantilever	2	90	Polyester Thermoplastic	-40 °C	105 ░C	45	10 Áin	0.25 Ám	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "
EDAC Inc. 346-090-500-203	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm	Solder Eyelet(s)	Non Specified - Dual Edge	Dual	2	Female	Green	Copper Alloy	Gold	Cantilever	2	90	Polyester Thermoplastic	-40 °C	105 ░C	45	10 Áin	0.25 Ám	2.95 mm	Floating Bobbin Flush Mount	0.116 in
EDAC Inc. 346-090-540-812	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm	Wire Wrap	Non Specified - Dual Edge	Dual	2	Female	Green	Copper Alloy	Gold	Cantilever	2	90	Polyester Thermoplastic	-40 °C	105 ░C	45	10 Áin	0.25 Ám		Side Mount Opening Unthreaded		3.25 mm	0.128 in
EDAC Inc. 346-090-526-212	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm	Solder	Non Specified - Dual Edge	Dual	2	Female	Green	Copper Alloy	Gold	Cantilever	2	90	Polyester Thermoplastic	-40 °C	105 ░C	45	10 Áin	0.25 Ám	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "
EDAC Inc. 346-090-521-204	Through Hole	1.37 mm	0.054 "	1.78 mm	0.07 in	0.125 in	3.18 mm	Solder	Non Specified - Dual Edge	Dual	2	Female	Green	Copper Alloy	Gold	Cantilever	2	90	Polyester Thermoplastic	-40 °C	105 ░C	45	10 Áin	0.25 Ám	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 13.47
Newark	Each	1	$ 14.05
		100	$ 9.29
		250	$ 8.36
		500	$ 6.92
		1000	$ 5.65

Description

General part information

346-090 Series

90 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
