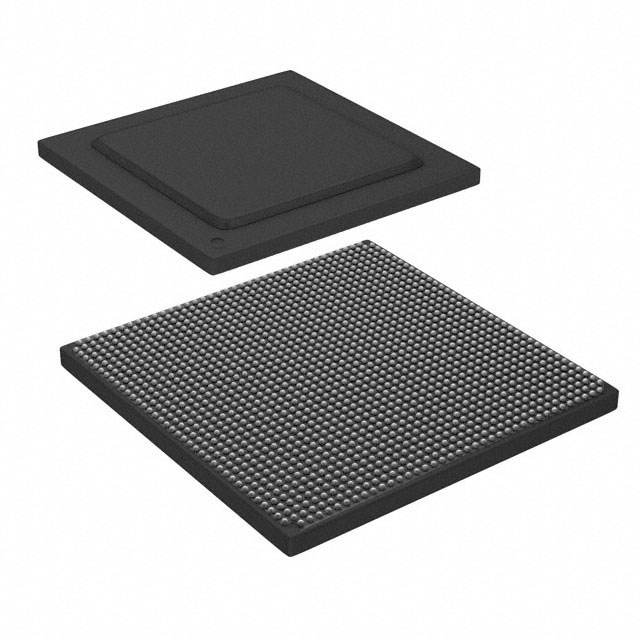

X66AK2H12AAW2

Unknown

Texas Instruments

IC DSP ARM SOC BGA

Search across all available documentation for this part.

Unknown

Texas Instruments

IC DSP ARM SOC BGA

Technical Specifications

Parameters and characteristics for this part

Specification	X66AK2H12AAW2

Clock Rate	1.2 GHz
Interface	EBI/EMI, UART/USART, USB 3.0, Ethernet, I2C, SPI, Serial RapidIO, DMA
Mounting Type	Surface Mount
Non-Volatile Memory	384 kB
On-Chip RAM	12.75 MB
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Package / Case	FCBGA, 1517-BBGA
Supplier Device Package	1517-FCBGA (40x40)
Type	DSP+ARM®
Voltage - Core	Variable
Voltage - I/O	1.5 V, 1.35 V, 3.3 V, 1 V, 1.8 V, 0.85 V

Part	Type	On-Chip RAM	Interface	Clock Rate	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - Core	Package / Case	Voltage - I/O	Supplier Device Package	Non-Volatile Memory	Non-Volatile Memory	Voltage - Core [custom]
Texas Instruments X66AK2H12AAAWA2	DSP+ARM®	12.75 MB	DMA EBI/EMI Ethernet I2C Serial RapidIO SPI UART/USART USB 3.0	1.2 GHz	-40 °C	100 °C	Surface Mount	Variable	1517-BBGA FCBGA	0.85 V 1 V 1.35 V 1.5 V 1.8 V 3.3 V	1517-FCBGA (40x40)	384 kB
Texas Instruments X66AK2G02ZBB60	DSP+ARM®	1 MB	CAN DMA EBI/EMI Ethernet I2C McASP McBSP MMC/SD QSPI SPI UART USB	600 MHz	0 °C	90 °C	Surface Mount		625-LFBGA	1.8 V 3.3 V	625-NFBGA (21x21)		External	0.9 V
Texas Instruments X66AK2E05XABD25	DSP+ARM®	2 MB	DMA EBI/EMI Ethernet I2C PCIe SPI TSIP UART USB 3.0 USIM	1.25 GHz	0 °C	85 °C	Surface Mount	Variable	1089-BFBGA FCBGA	1.35 V 1.5 V 1.8 V 3.3 V	1089-FCBGA (27x27)	256 kB
Texas Instruments X66AK2H12AAW2	DSP+ARM®	12.75 MB	DMA EBI/EMI Ethernet I2C Serial RapidIO SPI UART/USART USB 3.0	1.2 GHz	0 °C	85 °C	Surface Mount	Variable	1517-BBGA FCBGA	0.85 V 1 V 1.35 V 1.5 V 1.8 V 3.3 V	1517-FCBGA (40x40)	384 kB
Texas Instruments X66AK2G01ZBB60	DSP+ARM®	1 MB	CAN DMA EBI/EMI Ethernet I2C McASP McBSP MMC/SD QSPI SPI UART USB	600 MHz	0 °C	90 °C	Surface Mount		625-LFBGA	1.8 V 3.3 V	625-NFBGA (21x21)		External	0.9 V
Texas Instruments X66AK2H06AAAW2	DSP+ARM®	8.375 MB	DMA EBI/EMI Ethernet I2C Serial RapidIO SPI UART/USART USB 3.0	1.2 GHz	0 °C	85 °C	Surface Mount	Variable	1517-BBGA FCBGA	0.85 V 1 V 1.35 V 1.5 V 1.8 V 3.3 V	1517-FCBGA (40x40)	384 kB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	21	$ 325.72

General part information

IC DSP ARM SOC BGA
