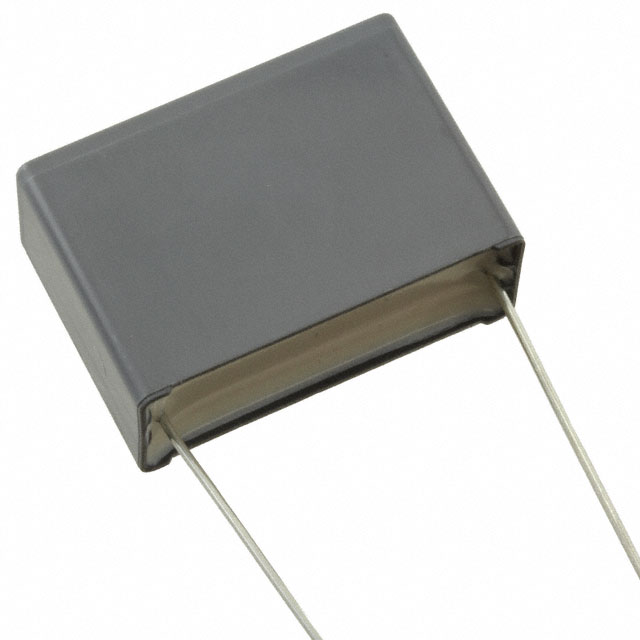

R75RW347050L4J

Active

KEMET

CAP FILM 0.47UF 5% 1.25KVDC RAD

Search across all available documentation for this part.

Active

KEMET

CAP FILM 0.47UF 5% 1.25KVDC RAD

Technical Specifications

Parameters and characteristics for this part

Specification	R75RW347050L4J

Applications	Switching, DV/DT, High Frequency, High Pulse
Capacitance	0.47 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	6.8 mOhms
Lead Spacing	37.5 mm
Lead Spacing	1.476 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	41.5 mm
Size / Dimension [x]	1.634 "
Size / Dimension [y]	24 mm
Size / Dimension [y]	0.945 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	600 V
Voltage Rating - DC	1250 V
Voltage Rating - DC	1.25 kV

Part	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage Rating - DC	Voltage Rating - DC	Voltage Rating - AC	Capacitance	ESR (Equivalent Series Resistance)	Dielectric Material	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Lead Spacing	Lead Spacing	Applications	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ratings
KEMET R75RW32205030J	105 ░C	-55 °C	PC Pins	0.87 in	22.1 mm	1250 V	1.25 kV	600 V	0.22 µF	5.1 mOhm	Metallized Polypropylene (PP)	Radial	1.634 "	0.433 in	11 mm	41.5 mm	5 %	37.5 mm	1.476 in	DV/DT High Frequency High Pulse Switching	Through Hole
KEMET R75RW339050L3J	105 ░C	-55 °C	PC Pins			1250 V	1.25 kV	600 V	0.39 µF	8.2 mOhms	Metallized Polypropylene (PP)	Radial	1.634 "	0.945 in	24 mm	41.5 mm	5 %	37.5 mm	1.476 in	DV/DT High Frequency High Pulse Switching	Through Hole	0.594 in	15.1 mm
KEMET R75RW347050L4J	105 ░C	-55 °C	PC Pins			1250 V	1.25 kV	600 V	0.47 µF	6.8 mOhms	Metallized Polypropylene (PP)	Radial	1.634 "	0.945 in	24 mm	41.5 mm	5 %	37.5 mm	1.476 in	DV/DT High Frequency High Pulse Switching	Through Hole
KEMET R75RW412050H4J	125 °C	-55 °C	PC Pins	1.579 in		1250 V	1.25 kV	600 V	1.2 µF	4 mOhms	Metallized Polypropylene (PP)	Radial	1.634 "	0.787 in	20 mm	41.5 mm	5 %	37.5 mm	1.476 in	Automotive High Frequency Switching High Pulse DV/DT	Through Hole		40.1 mm	AEC-Q200

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.47 µF Film Capacitor 600V 1250V (1.25kV) Polypropylene (PP), Metallized Radial
