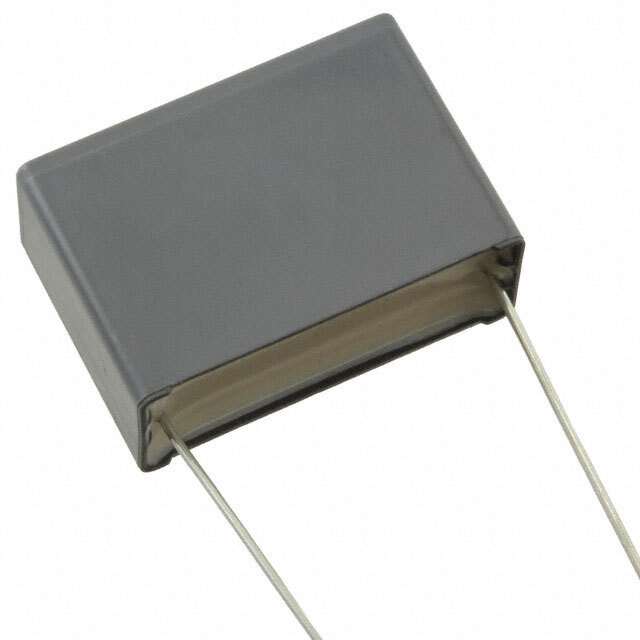

R75RW339050L3J

Active

KEMET

CAP FILM 0.39UF 5% 1.25KVDC RAD

Search across all available documentation for this part.

Active

KEMET

CAP FILM 0.39UF 5% 1.25KVDC RAD

Technical Specifications

Parameters and characteristics for this part

Specification	R75RW339050L3J

Applications	Switching, DV/DT, High Frequency, High Pulse
Capacitance	0.39 µF
Dielectric Material	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	8.2 mOhms
Height - Seated (Max) [Max]	0.594 in
Height - Seated (Max) [Max]	15.1 mm
Lead Spacing	37.5 mm
Lead Spacing	1.476 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	41.5 mm
Size / Dimension [x]	1.634 "
Size / Dimension [y]	24 mm
Size / Dimension [y]	0.945 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	600 V
Voltage Rating - DC	1250 V
Voltage Rating - DC	1.25 kV

Part	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage Rating - DC	Voltage Rating - DC	Voltage Rating - AC	Capacitance	ESR (Equivalent Series Resistance)	Dielectric Material	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Lead Spacing	Lead Spacing	Applications	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ratings
KEMET R75RW32205030J	105 ░C	-55 °C	PC Pins	0.87 in	22.1 mm	1250 V	1.25 kV	600 V	0.22 µF	5.1 mOhm	Metallized Polypropylene (PP)	Radial	1.634 "	0.433 in	11 mm	41.5 mm	5 %	37.5 mm	1.476 in	DV/DT High Frequency High Pulse Switching	Through Hole
KEMET R75RW339050L3J	105 ░C	-55 °C	PC Pins			1250 V	1.25 kV	600 V	0.39 µF	8.2 mOhms	Metallized Polypropylene (PP)	Radial	1.634 "	0.945 in	24 mm	41.5 mm	5 %	37.5 mm	1.476 in	DV/DT High Frequency High Pulse Switching	Through Hole	0.594 in	15.1 mm
KEMET R75RW347050L4J	105 ░C	-55 °C	PC Pins			1250 V	1.25 kV	600 V	0.47 µF	6.8 mOhms	Metallized Polypropylene (PP)	Radial	1.634 "	0.945 in	24 mm	41.5 mm	5 %	37.5 mm	1.476 in	DV/DT High Frequency High Pulse Switching	Through Hole
KEMET R75RW412050H4J	125 °C	-55 °C	PC Pins	1.579 in		1250 V	1.25 kV	600 V	1.2 µF	4 mOhms	Metallized Polypropylene (PP)	Radial	1.634 "	0.787 in	20 mm	41.5 mm	5 %	37.5 mm	1.476 in	Automotive High Frequency Switching High Pulse DV/DT	Through Hole		40.1 mm	AEC-Q200
