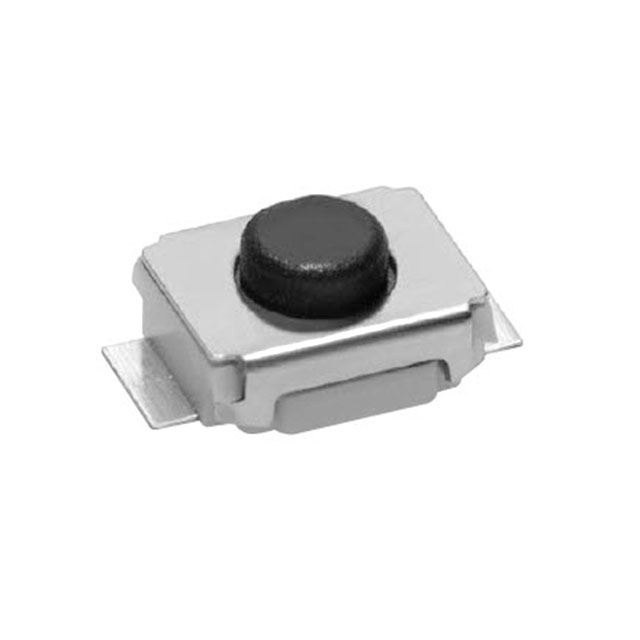

B3U-1100P - B3U-1100P

B3U-1100P

Active
Omron Electronics Inc-EMC Div

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date CodesBasics of Tactile Switches+2
B3U-1100P - B3U-1100P

B3U-1100P

Active
Omron Electronics Inc-EMC Div

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

DocumentsHow to Read Date CodesBasics of Tactile Switches+2

Technical Specifications

Parameters and characteristics for this part

SpecificationB3U-1100P
Actuator OrientationTop Actuated
Actuator TypeStandard
CircuitSPST-NO
Contact Rating @ Voltage0.05 A, 12 VDC
FeaturesGrounding Pin
IlluminationNon-Illuminated
Ingress ProtectionDust Proof
Mechanical Life200000 Cycles
Mounting TypeSurface Mount
Operating Force153 gf
Operating Temperature [Max]70 °C
Operating Temperature [Min]-25 °C
Switch FunctionOff-Mom
Switch Travel0.15 mm
Termination StyleSMD (SMT) Tab

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.02
10$ 0.98
25$ 0.92
100$ 0.80
250$ 0.73
500$ 0.67
1000$ 0.62
Digi-Reel® 1$ 1.02
10$ 0.98
25$ 0.92
100$ 0.80
250$ 0.73
500$ 0.67
1000$ 0.62
Tape & Reel (TR) 3500$ 0.57
7000$ 0.53
10500$ 0.49

Description

General part information

B3U Series

Tactile Switch SPST-NO Top Actuated Surface Mount
