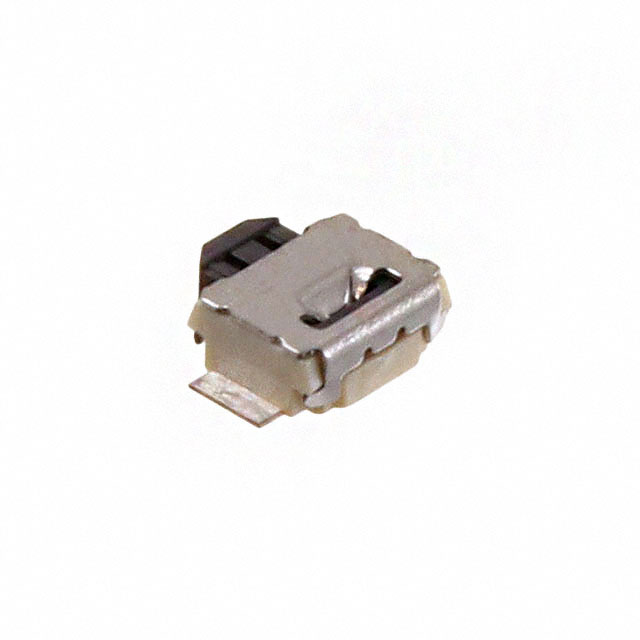

B3U-3000P-B - B3U-3000P-B

B3U-3000P-B

Active
Omron Electronics Inc-EMC Div

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBasics of Tactile SwitchesTactile Switch Safety Precautions+2
B3U-3000P-B - B3U-3000P-B

B3U-3000P-B

Active
Omron Electronics Inc-EMC Div

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

DocumentsBasics of Tactile SwitchesTactile Switch Safety Precautions+2

Technical Specifications

Parameters and characteristics for this part

SpecificationB3U-3000P-B
Actuator OrientationSide Actuated
Actuator TypeRectangular Button
CircuitSPST-NO
Contact Rating @ Voltage0.05 A, 12 VDC
IlluminationNon-Illuminated
Ingress ProtectionDust Proof
Mechanical Life100000 Cycles
Mounting TypeSurface Mount, Right Angle
Operating Force162 gf
Operating Temperature [Max]70 °C
Operating Temperature [Min]-25 °C
Outline [x]4 mm
Outline [y]2.5 mm
Switch FunctionOff-Mom
Switch Travel0.2 mm
Termination StyleSMD (SMT) Tab

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.72
10$ 0.69
25$ 0.65
100$ 0.56
250$ 0.51
500$ 0.47
1000$ 0.47
Digi-Reel® 1$ 0.72
10$ 0.69
25$ 0.65
100$ 0.56
250$ 0.51
500$ 0.47
1000$ 0.47
Tape & Reel (TR) 4000$ 0.47

Description

General part information

B3U Series

Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
