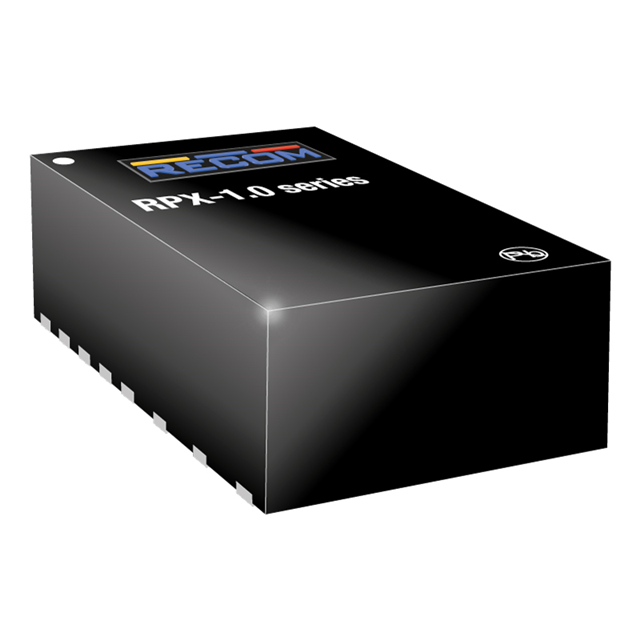

RPX-1.0-R

Active

RECOM Power

NON ISOLATED POL DC/DC CONVERTER, MODULE, 30 W, 800 MV, 30 V, 1 A

Search across all available documentation for this part.

Active

RECOM Power

NON ISOLATED POL DC/DC CONVERTER, MODULE, 30 W, 800 MV, 30 V, 1 A

Technical Specifications

Parameters and characteristics for this part

Part	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Regulator Topology	Current - Output	Supplied Contents	Utilized IC / Part	Board Type	Voltage - Output	Outputs and Type	Outputs and Type	Applications	Voltage - Input (Min) [Min]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Package / Case	Mounting Type	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Supplier Device Package	Type	Number of Outputs	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]
RECOM Power RPX-1.0-EVM-1	DC/DC Step Down	4 V	36 V	Buck	1 A	Board(s)	RPX-1.0	Fully Populated	0.8 V 1.8 V 3.3 V 5 V 12 V 15 VDC 24 V	Non-Isolated	7
RECOM Power RPX-1.0-CT												ITE (Commercial)	4 V	30 V	0.8 V	16-PowerLFQFN Module	Surface Mount	36 V	1 A	16-QFN (5x3)	Non-Isolated PoL Module	1	87 %	1.6 mm	0.12 "	0.2 in	3 mm	0.06 "	5 mm
RECOM Power RPX-1.0-R												ITE (Commercial)	4 V	30 V	0.8 V	16-PowerLFQFN Module	Surface Mount	36 V	1 A	16-QFN (5x3)	Non-Isolated PoL Module	1	87 %	1.6 mm	0.12 "	0.2 in	3 mm	0.06 "	5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 30V 1A 4V - 36V Input
