EVALUATION BOARD, BUCK REGULATOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN +1

RPX-1.0-EVM-1

Active

RECOM Power

EVALUATION BOARD, BUCK REGULATOR

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RPX-1.0-EVM-1

Board Type	Fully Populated
Current - Output	1 A
Main Purpose	DC/DC, Step Down
Outputs and Type	Non-Isolated
Outputs and Type	7
Regulator Topology	Buck
Supplied Contents	Board(s)
Utilized IC / Part	RPX-1.0
Voltage - Input [Max]	36 V
Voltage - Input [Min]	4 V
Voltage - Output	3.3 V, 0.8 V, 5 V, 15 VDC, 1.8 V, 12 V, 24 V

RPX-1.0 Series

Part	Main Purpose	Voltage - Input [Min]	Voltage - Input [Max]	Regulator Topology	Current - Output	Supplied Contents	Utilized IC / Part	Board Type	Voltage - Output	Outputs and Type	Outputs and Type	Applications	Voltage - Input (Min) [Min]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Package / Case	Mounting Type	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Supplier Device Package	Type	Number of Outputs	Efficiency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]
RECOM Power RPX-1.0-EVM-1	DC/DC Step Down	4 V	36 V	Buck	1 A	Board(s)	RPX-1.0	Fully Populated	0.8 V 1.8 V 3.3 V 5 V 12 V 15 VDC 24 V	Non-Isolated	7
RECOM Power RPX-1.0-CT												ITE (Commercial)	4 V	30 V	0.8 V	16-PowerLFQFN Module	Surface Mount	36 V	1 A	16-QFN (5x3)	Non-Isolated PoL Module	1	87 %	1.6 mm	0.12 "	0.2 in	3 mm	0.06 "	5 mm
RECOM Power RPX-1.0-R												ITE (Commercial)	4 V	30 V	0.8 V	16-PowerLFQFN Module	Surface Mount	36 V	1 A	16-QFN (5x3)	Non-Isolated PoL Module	1	87 %	1.6 mm	0.12 "	0.2 in	3 mm	0.06 "	5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 53.10
		5	$ 49.78
		10	$ 47.55
		25	$ 45.51
		50	$ 43.64
		100	$ 40.85
		250	$ 39.83
Newark	Each	1	$ 62.77
		25	$ 59.90
		50	$ 58.31
		100	$ 56.40
		250	$ 54.48

Description

General part information

RPX-1.0 Series

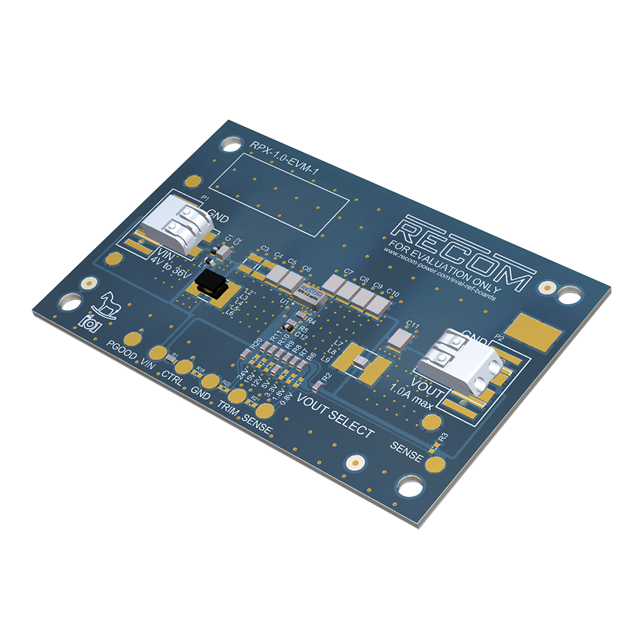

The RPX-1.0-EVM-1 is an evaluation platform for RPX-1.0 buck regulator module. It generates a constant output voltage selectable from 0.8V, 1.8V, 3.3V, 5V, 12V, 15V, or 24V from a DC input in the range of 4-36V. It has a maximum continuous output current of 1A. All the functions of the RPX-1.0 such as output voltage selection, control, power good, trim, and output sense can be readily evaluated. Also the behaviour in overload or over-temperature can be evaluated easily before it is designed in.
