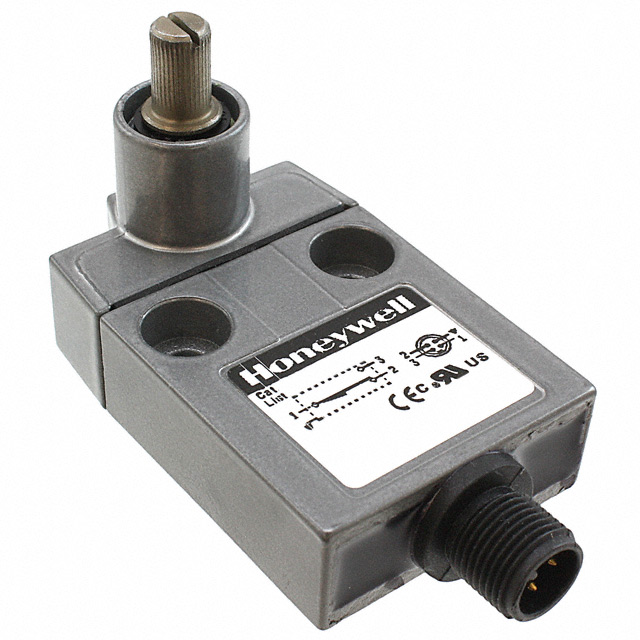

914CE16-Q

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Limit Switches Line Guide

914CE16-Q

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet Limit Switches Line Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	914CE16-Q

Actuator Type	Side Rotary - No Lever
Circuit	SPDT
Current Rating (Amps)	3 A
Differential Travel	3 °
Ingress Protection	IP66
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	34 gfm
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	0 °C
Overtravel	40 °
Pretravel	30 °
Release Force	7.2 gfm
Switch Function	On-Mom
Termination Style	Connector
Voltage Rating - AC	125 V

914CE Series

Part	Ingress Protection	Overtravel	Overtravel	Operating Position	Operating Position	Operating Temperature [Max]	Operating Temperature [Min]	Pretravel	Pretravel	Switch Function	Mechanical Life	Release Force	Circuit	Termination Style	Current Rating (Amps)	Voltage Rating - AC	Operating Force	Differential Travel	Differential Travel	Mounting Type	Actuator Type	Voltage Rating - DC	Features
Honeywell Sensing and Productivity Solutions 914CE2-AQ	IP66	3 mm	0.118 in	1.122 in	28.5 mm	105 ░C	0 °C	0.071 in	1.8 mm	On-Mom	10000000 Cycles	450 gf	SPDT	Connector	3 A	125 V	1200 gf	0.1 mm	0.004 in	Chassis Mount	Roller Plunger
Honeywell Sensing and Productivity Solutions 914CE16-Q	IP66		40 °			105 ░C	0 °C	30 °		On-Mom	10000000 Cycles	7.2 gfm	SPDT	Connector	3 A	125 V	34 gfm		3 °	Chassis Mount	Side Rotary - No Lever
Honeywell Sensing and Productivity Solutions 914CE2-15	IP66	3 mm	0.118 in	1.122 in	28.5 mm	105 ░C	0 °C	0.071 in	1.8 mm	On-Mom	10000000 Cycles	450 gf	SPDT	Cable Leads	3 A 5 A	240 V	1200 gf	0.1 mm	0.004 in	Chassis Mount	Roller Plunger	28 V	15 ft
Honeywell Sensing and Productivity Solutions 914CE31-AQ	IP66	3 mm	0.118 in	1.354 in	34.4 mm	105 ░C	0 °C	0.071 in	1.8 mm	On-Mom	10000000 Cycles	450 gf	SPDT	Connector	3 A	125 V	1785 gf	0.1 mm	0.004 in	Chassis Mount	Roller Plunger
Honeywell Sensing and Productivity Solutions 914CE31-3L1	IP66	3 mm	0.118 in	1.354 in	34.4 mm	105 ░C	-40 °C	0.071 in	1.8 mm	On-Mom	10000000 Cycles	450 gf	SPDT	Cable Leads	3 A 5 A	240 V	1785 gf	0.1 mm	0.004 in	Chassis Mount	Roller Plunger	28 V	3 '
Honeywell Sensing and Productivity Solutions 914CE16-6	IP66		40 °			105 ░C	0 °C	30 °		On-Mom	10000000 Cycles	7.2 gfm	SPDT	Cable Leads	3 A 5 A	240 V	34 gfm		3 °	Chassis Mount	Side Rotary - No Lever	28 V
Honeywell Sensing and Productivity Solutions 914CE31-6	IP66	3 mm	0.118 in	1.354 in	34.4 mm	105 ░C	0 °C	0.071 in	1.8 mm	On-Mom	10000000 Cycles	450 gf	SPDT	Cable Leads	3 A 5 A	240 V	1785 gf	0.1 mm	0.004 in	Chassis Mount	Roller Plunger	28 V	6 ft
Honeywell Sensing and Productivity Solutions 914CE20-6	IP66			1.1 in	28 mm	105 ░C	0 °C			On-Mom	10000000 Cycles		SPDT	Cable Leads	3 A 5 A	240 V	56 gf			Chassis Mount	Spring Wire	28 V	6 ft
Honeywell Sensing and Productivity Solutions 914CE3-3A	IP66	3 mm	0.118 in	1.122 in	28.5 mm	105 ░C	0 °C	0.071 in	1.8 mm	On-Mom	10000000 Cycles	450 gf	SPDT	Cable Leads	3 A 5 A	240 V	1200 gf	0.1 mm	0.004 in	Chassis Mount	Cross Roller Plunger	28 V	3 '
Honeywell Sensing and Productivity Solutions 914CE18-6	IP66	3 mm	0.118 in	0.98 in	24.9 mm	105 ░C	0 °C	0.071 in	1.8 mm	On-Mom	10000000 Cycles	450 gf	SPDT	Cable Leads	3 A 5 A	240 V	2300 gf	0.1 mm	0.004 in	Chassis Mount	Round (Pin Plunger)	28 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 206.03

Description

General part information

914CE Series

Switch SPDT Chassis Mount

Documents

Technical documentation and resources

Datasheet

Limit Switches Line Guide

Datasheet
