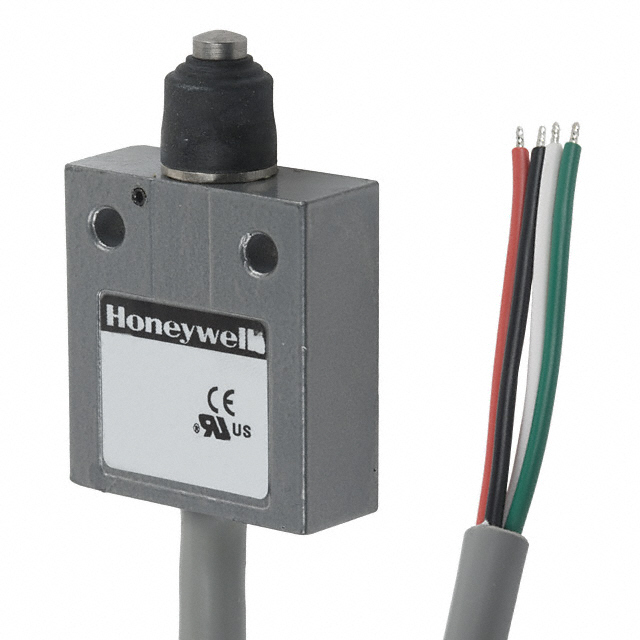

914CE18-6

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 240V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Sensor and Switch Brochure +1

914CE18-6

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 240V

Deep-Dive with AI

DocumentsDatasheet Sensor and Switch Brochure +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	914CE18-6

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating (Amps)	3 A, 5 A
Differential Travel	0.1 mm
Differential Travel	0.004 in
Ingress Protection	IP66
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	2300 gf
Operating Position	24.9 mm
Operating Position	0.98 in
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	0 °C
Overtravel	3 mm
Overtravel	0.118 in
Pretravel	0.071 in
Pretravel	1.8 mm
Release Force	450 gf
Switch Function	On-Mom
Termination Style	Cable Leads
Voltage Rating - AC	240 V
Voltage Rating - DC	28 V

914CE Series

Part	Ingress Protection	Overtravel	Overtravel	Operating Position	Operating Position	Operating Temperature [Max]	Operating Temperature [Min]	Pretravel	Pretravel	Switch Function	Mechanical Life	Release Force	Circuit	Termination Style	Current Rating (Amps)	Voltage Rating - AC	Operating Force	Differential Travel	Differential Travel	Mounting Type	Actuator Type	Voltage Rating - DC	Features
Honeywell Sensing and Productivity Solutions 914CE2-AQ	IP66	3 mm	0.118 in	1.122 in	28.5 mm	105 ░C	0 °C	0.071 in	1.8 mm	On-Mom	10000000 Cycles	450 gf	SPDT	Connector	3 A	125 V	1200 gf	0.1 mm	0.004 in	Chassis Mount	Roller Plunger
Honeywell Sensing and Productivity Solutions 914CE16-Q	IP66		40 °			105 ░C	0 °C	30 °		On-Mom	10000000 Cycles	7.2 gfm	SPDT	Connector	3 A	125 V	34 gfm		3 °	Chassis Mount	Side Rotary - No Lever
Honeywell Sensing and Productivity Solutions 914CE2-15	IP66	3 mm	0.118 in	1.122 in	28.5 mm	105 ░C	0 °C	0.071 in	1.8 mm	On-Mom	10000000 Cycles	450 gf	SPDT	Cable Leads	3 A 5 A	240 V	1200 gf	0.1 mm	0.004 in	Chassis Mount	Roller Plunger	28 V	15 ft
Honeywell Sensing and Productivity Solutions 914CE31-AQ	IP66	3 mm	0.118 in	1.354 in	34.4 mm	105 ░C	0 °C	0.071 in	1.8 mm	On-Mom	10000000 Cycles	450 gf	SPDT	Connector	3 A	125 V	1785 gf	0.1 mm	0.004 in	Chassis Mount	Roller Plunger
Honeywell Sensing and Productivity Solutions 914CE31-3L1	IP66	3 mm	0.118 in	1.354 in	34.4 mm	105 ░C	-40 °C	0.071 in	1.8 mm	On-Mom	10000000 Cycles	450 gf	SPDT	Cable Leads	3 A 5 A	240 V	1785 gf	0.1 mm	0.004 in	Chassis Mount	Roller Plunger	28 V	3 '
Honeywell Sensing and Productivity Solutions 914CE16-6	IP66		40 °			105 ░C	0 °C	30 °		On-Mom	10000000 Cycles	7.2 gfm	SPDT	Cable Leads	3 A 5 A	240 V	34 gfm		3 °	Chassis Mount	Side Rotary - No Lever	28 V
Honeywell Sensing and Productivity Solutions 914CE31-6	IP66	3 mm	0.118 in	1.354 in	34.4 mm	105 ░C	0 °C	0.071 in	1.8 mm	On-Mom	10000000 Cycles	450 gf	SPDT	Cable Leads	3 A 5 A	240 V	1785 gf	0.1 mm	0.004 in	Chassis Mount	Roller Plunger	28 V	6 ft
Honeywell Sensing and Productivity Solutions 914CE20-6	IP66			1.1 in	28 mm	105 ░C	0 °C			On-Mom	10000000 Cycles		SPDT	Cable Leads	3 A 5 A	240 V	56 gf			Chassis Mount	Spring Wire	28 V	6 ft
Honeywell Sensing and Productivity Solutions 914CE3-3A	IP66	3 mm	0.118 in	1.122 in	28.5 mm	105 ░C	0 °C	0.071 in	1.8 mm	On-Mom	10000000 Cycles	450 gf	SPDT	Cable Leads	3 A 5 A	240 V	1200 gf	0.1 mm	0.004 in	Chassis Mount	Cross Roller Plunger	28 V	3 '
Honeywell Sensing and Productivity Solutions 914CE18-6	IP66	3 mm	0.118 in	0.98 in	24.9 mm	105 ░C	0 °C	0.071 in	1.8 mm	On-Mom	10000000 Cycles	450 gf	SPDT	Cable Leads	3 A 5 A	240 V	2300 gf	0.1 mm	0.004 in	Chassis Mount	Round (Pin Plunger)	28 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 171.73
