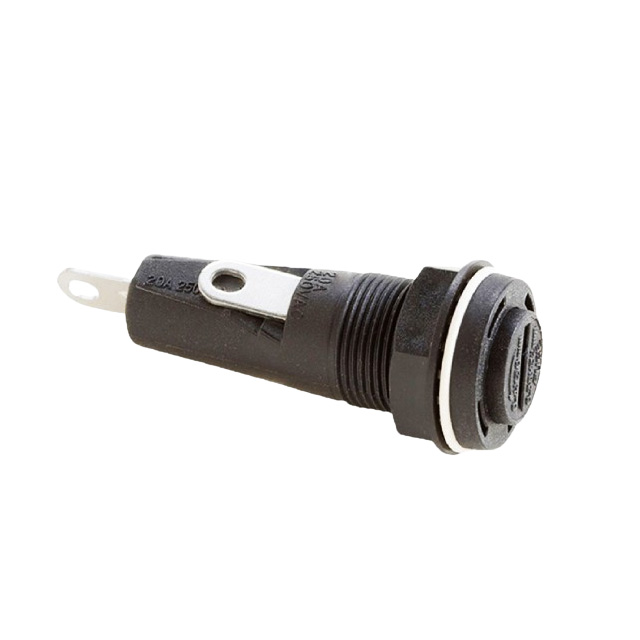

PMA-DS-07-SOS
ActiveOptiFuse
1-1/4"X1/4" - DRIVER/SCREW,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PMA-DS-07-SOS
ActiveOptiFuse
1-1/4"X1/4" - DRIVER/SCREW,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PMA-DS-07-SOS |
|---|---|
| Contact Finish | Nickel |
| Contact Material | Brass |
| Current Rating (Amps) | 20 A |
| For Use With/Related Products | 3AG |
| Fuse Size [diameter] | 0.25 " |
| Fuse Size [diameter] | 6.35 mm |
| Fuse Size [x] | 32 mm |
| Fuse Size [x] | 1.26 in |
| Fuse Type | Cartridge |
| Fuseholder Type | Holder |
| Number of Circuits | 1 |
| Orientation | Horizontal and Vertical |
| Termination Style | Solder Lug |
| Voltage | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.07 | |
| 10 | $ 5.61 | |||
| 25 | $ 5.11 | |||
| 50 | $ 4.41 | |||
| 100 | $ 3.67 | |||
| 250 | $ 3.42 | |||
| 500 | $ 3.06 | |||
| 1000 | $ 2.90 | |||
Description
General part information
PMA-DS Series
Fuse Holder 20 A 250V 1 Circuit Cartridge Panel Mount
