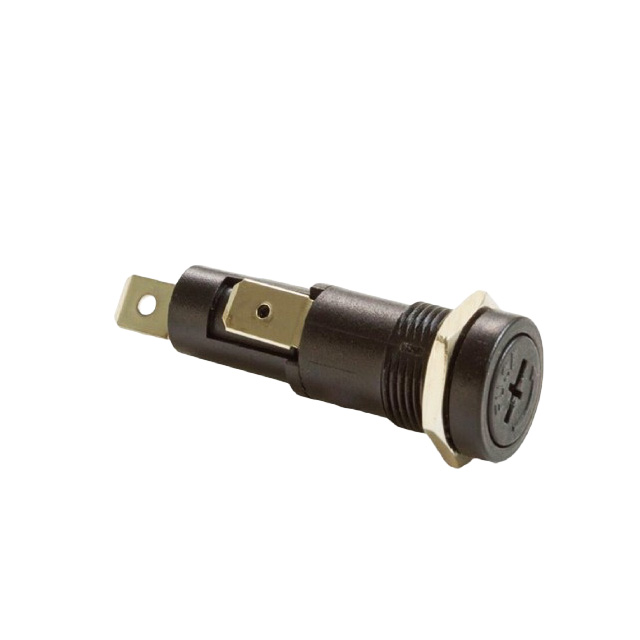

PMA-DS-08-Q2S

Active

OptiFuse

1-1/4"X1/4" - DRIVER/SCREW,

Search across all available documentation for this part.

Active

OptiFuse

1-1/4"X1/4" - DRIVER/SCREW,

Technical Specifications

Parameters and characteristics for this part

Specification	PMA-DS-08-Q2S

Contact Finish	Nickel
Contact Material	Brass
Current Rating (Amps)	10 A
For Use With/Related Products	3AG
Fuse Size [diameter]	0.25 "
Fuse Size [diameter]	6.35 mm
Fuse Size [x]	32 mm
Fuse Size [x]	1.26 in
Fuse Type	Cartridge
Fuseholder Type	Holder
Number of Circuits	1
Orientation	Horizontal and Vertical
Voltage	250 V

Part	Contact Finish	For Use With/Related Products	Current Rating (Amps)	Fuse Size [x]	Fuse Size [x]	Fuse Size [diameter]	Fuse Size [diameter]	Fuse Type	Fuseholder Type	Termination Style	Voltage	Contact Material	Orientation	Number of Circuits
OptiFuse PMA-DS-07-SOS	Nickel	3AG	20 A	32 mm	1.26 in	0.25 "	6.35 mm	Cartridge	Holder	Solder Lug	250 V	Brass	Horizontal and Vertical	1
OptiFuse PMA-DS-08-Q2S	Nickel	3AG	10 A	32 mm	1.26 in	0.25 "	6.35 mm	Cartridge	Holder		250 V	Brass	Horizontal and Vertical	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.33

General part information

Fuse Holder 10 A 250V 1 Circuit Cartridge Panel Mount
