0150220450

Active

Molex

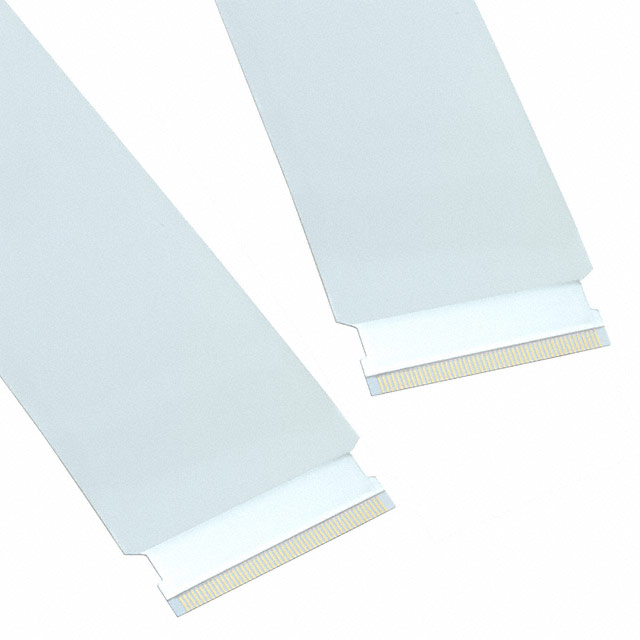

CABLE FFC/FPC 50POS 0.5MM 4"

Search across all available documentation for this part.

Active

Molex

CABLE FFC/FPC 50POS 0.5MM 4"

Technical Specifications

Parameters and characteristics for this part

Specification	0150220450

Cable Type	FPC, FFC
Length	4 in
Length	101.6 mm
Length - Exposed Ends [x]	1.9 mm
Length - Exposed Ends [x]	0.075 in
Number of Conductors	50
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination Style	Backers on Both Sides, Top on Both Sides

Part	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Pitch [x]	Pitch [x]	Termination Style	Length	Length	Cable Type	Number of Conductors	Length [x]	Length [x]
Molex 0150220280	1.9 mm	0.075 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides	50.8 mm	2 in	FFC FPC	80
Molex 0150221250	1.9 mm	0.075 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides	304.8 mm		FFC FPC	50	12 in
Molex 0150221050	1.9 mm	0.075 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides	254 mm		FFC FPC	50	10 in
Molex 0150221230	1.9 mm	0.075 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides	304.8 mm		FFC FPC	30	12 in
Molex 0150220450	1.9 mm	0.075 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides	101.6 mm	4 in	FFC FPC	50
Molex 0150222450	1.9 mm	0.075 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides			FFC FPC	50	24 in	609.6 mm
Molex 0150220630	1.9 mm	0.075 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides	152.4 mm	6 in	FFC FPC	30
Molex 0150220250	1.9 mm	0.075 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides	50.8 mm	2 in	FFC FPC	50
Molex 0150220650	1.9 mm	0.075 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides	152.4 mm	6 in	FFC FPC	50
Molex 0150220680	1.9 mm	0.075 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides	152.4 mm	6 in	FFC FPC	80

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

50 Position FFC, FPC Cable 0.020" (0.50mm) 4.000" (101.60mm)
