0150221230

Active

Molex

CABLE FFC/FPC 30POS 0.5MM 12"

Search across all available documentation for this part.

Active

Molex

CABLE FFC/FPC 30POS 0.5MM 12"

Technical Specifications

Parameters and characteristics for this part

Specification	0150221230

Cable Type	FPC, FFC
Length	304.8 mm
Length - Exposed Ends [x]	1.9 mm
Length - Exposed Ends [x]	0.075 in
Length [x]	12 in
Number of Conductors	30
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination Style	Backers on Both Sides, Top on Both Sides

Part	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Pitch [x]	Pitch [x]	Termination Style	Length	Length	Cable Type	Number of Conductors	Length [x]	Length [x]
Molex 0150220280	1.9 mm	0.075 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides	50.8 mm	2 in	FFC FPC	80
Molex 0150221250	1.9 mm	0.075 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides	304.8 mm		FFC FPC	50	12 in
Molex 0150221050	1.9 mm	0.075 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides	254 mm		FFC FPC	50	10 in
Molex 0150221230	1.9 mm	0.075 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides	304.8 mm		FFC FPC	30	12 in
Molex 0150220450	1.9 mm	0.075 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides	101.6 mm	4 in	FFC FPC	50
Molex 0150222450	1.9 mm	0.075 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides			FFC FPC	50	24 in	609.6 mm
Molex 0150220630	1.9 mm	0.075 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides	152.4 mm	6 in	FFC FPC	30
Molex 0150220250	1.9 mm	0.075 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides	50.8 mm	2 in	FFC FPC	50
Molex 0150220650	1.9 mm	0.075 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides	152.4 mm	6 in	FFC FPC	50
Molex 0150220680	1.9 mm	0.075 in	0.5 mm	0.02 in	Backers on Both Sides Top on Both Sides	152.4 mm	6 in	FFC FPC	80

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

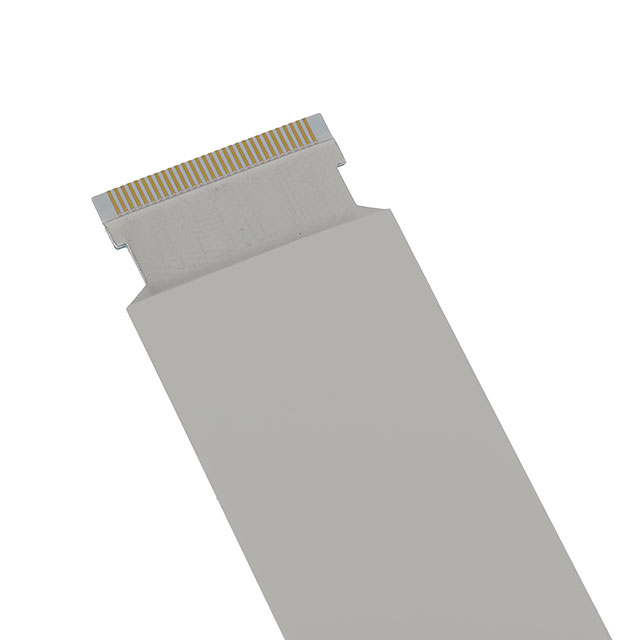

30 Position FFC, FPC Cable 0.020" (0.50mm) 12.0" (304.8mm)
