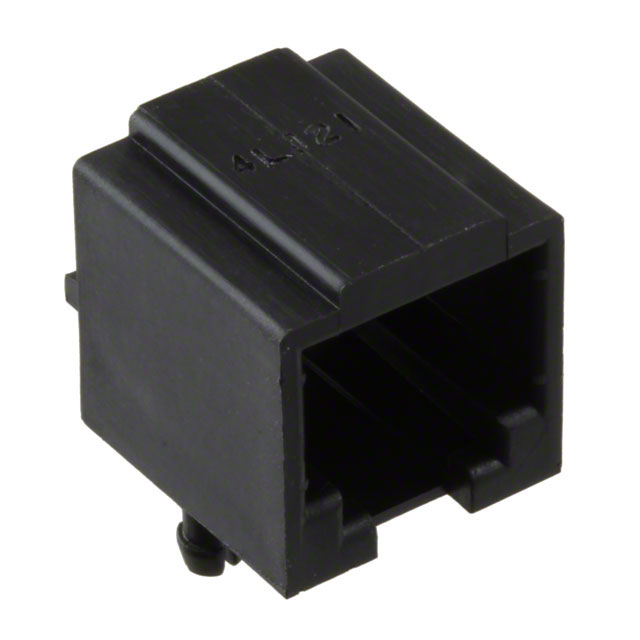

TM5RU1-64(50)

Hirose Electric USA, Inc.

CONN MOD JACK 6P4C R/A UNSHLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TM5RU1-64(50)

Hirose Electric USA, Inc.

CONN MOD JACK 6P4C R/A UNSHLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TM5RU1-64(50)

Connector Type	Jack
Housing Material	Polybutylene Terephthalate (PBT)
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	6p4c
Number of Rows	1
Orientation	90 °
Shielding	Unshielded
Tab Direction	Down
Termination	Solder

TM5R Series

Part	Termination	Connector Type	Number of Ports	Orientation	Number of Positions/Contacts	LED Color	Shielding	Number of Rows	Mounting Type	Tab Direction	Features	Number of Positions/Contacts	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish	Shell Material, Finish	Convert To (Adapter End)	Type	Convert From (Adapter End)
Hirose Electric USA, Inc. TM5RLF-88(50)	Solder	Jack	1	90 °	8p8c (RJ45 Ethernet)	Does Not Contain LED	Shielded	1	Through Hole	Down	Board Lock Panel Stops
Hirose Electric USA, Inc. TM5RU1-62(50)	Solder	Jack	1	90 °		Does Not Contain LED	Unshielded	1	Through Hole	Down		2 6	Polybutylene Terephthalate (PBT)
Hirose Electric USA, Inc. TM5RL-88-JJ5E	Solder	Jack	1	90 °	8p8c (RJ45 Ethernet)	Does Not Contain LED	Unshielded	1	Through Hole	Down			Polybutylene Terephthalate (PBT)	-25 °C	60 °C	Phosphor Bronze	Gold
Hirose Electric USA, Inc. TM5RL-88(50)	Solder	Jack	1	90 °	8p8c (RJ45 Ethernet)	Does Not Contain LED	Unshielded	1	Through Hole	Down			Polybutylene Terephthalate (PBT)	-25 °C	60 °C	Phosphor Bronze	Gold
Hirose Electric USA, Inc. TM5RE3-66(20)	Solder	Jack	1	90 °	6p6c (RJ11 RJ12 RJ14 RJ25)	Does Not Contain LED	Unshielded	1	Through Hole	Side	Board Lock Panel Stops		Polybutylene Terephthalate (PBT)	-25 °C	60 °C	Phosphor Bronze	Gold
Hirose Electric USA, Inc. TM5RL-88-JJ(51)							Unshielded		Free Hanging (In-Line)									Thermoplastic	8p8c (RJ45) Jack	Coupler	Jack 8p8c (RJ45)
Hirose Electric USA, Inc. TM5RE2X-64(20)	Solder	Jack	1	90 °	6p4c	Does Not Contain LED	Unshielded	1	Through Hole	Down	Board Lock Panel Stops		Polybutylene Terephthalate (PBT)
Hirose Electric USA, Inc. TM5RF-44(50)	Solder	Jack	1	90 °	4p4c	Does Not Contain LED	Unshielded	1	Through Hole	Side	Board Lock Panel Stops		Polybutylene Terephthalate (PBT)	-25 °C	60 °C	Phosphor Bronze	Gold
Hirose Electric USA, Inc. TM5RA-44(50)	Solder	Jack	1	90 °	4p4c	Does Not Contain LED	Unshielded	1	Through Hole	Down			Polybutylene Terephthalate (PBT)			Phosphor Bronze	Gold
Hirose Electric USA, Inc. TM5RU1-64(50)	Solder	Jack	1	90 °	6p4c	Does Not Contain LED	Unshielded	1	Through Hole	Down			Polybutylene Terephthalate (PBT)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.69
		10	$ 1.47
		25	$ 1.41
		40	$ 1.38

Description

General part information

TM5R Series

Jack Modular Connector 6p4c (RJ11, RJ14) 90° Angle (Right) Unshielded
