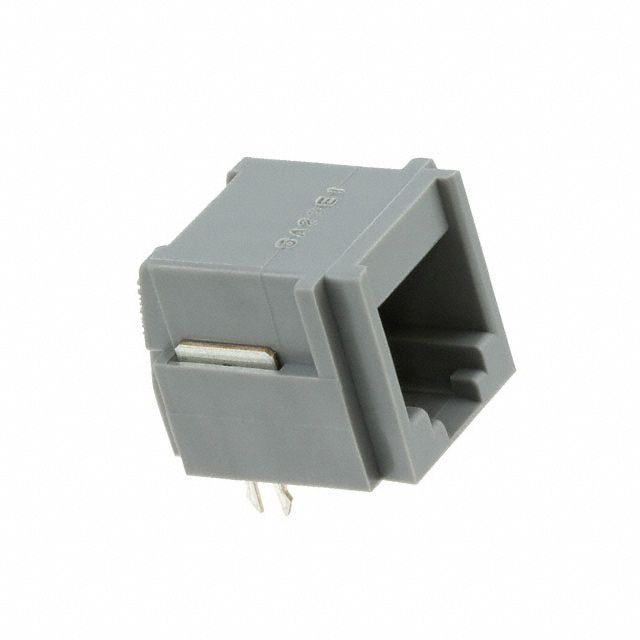

TM5RE3-66(20)

Active

Hirose Electric USA, Inc.

RIGHT ANGLE THT TYPE MODULAR JACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TM5RE3-66(20)

Active

Hirose Electric USA, Inc.

RIGHT ANGLE THT TYPE MODULAR JACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TM5RE3-66(20)

Connector Type	Jack
Contact Finish	Gold
Contact Material	Phosphor Bronze
Features	Board Lock, Panel Stops
Housing Material	Polybutylene Terephthalate (PBT)
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	6p6c (RJ11, RJ12, RJ14, RJ25)
Number of Rows	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Orientation	90 °
Shielding	Unshielded
Tab Direction	Side
Termination	Solder

TM5R Series

Part	Termination	Connector Type	Number of Ports	Orientation	Number of Positions/Contacts	LED Color	Shielding	Number of Rows	Mounting Type	Tab Direction	Features	Number of Positions/Contacts	Housing Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish	Shell Material, Finish	Convert To (Adapter End)	Type	Convert From (Adapter End)
Hirose Electric USA, Inc. TM5RLF-88(50)	Solder	Jack	1	90 °	8p8c (RJ45 Ethernet)	Does Not Contain LED	Shielded	1	Through Hole	Down	Board Lock Panel Stops
Hirose Electric USA, Inc. TM5RU1-62(50)	Solder	Jack	1	90 °		Does Not Contain LED	Unshielded	1	Through Hole	Down		2 6	Polybutylene Terephthalate (PBT)
Hirose Electric USA, Inc. TM5RL-88-JJ5E	Solder	Jack	1	90 °	8p8c (RJ45 Ethernet)	Does Not Contain LED	Unshielded	1	Through Hole	Down			Polybutylene Terephthalate (PBT)	-25 °C	60 °C	Phosphor Bronze	Gold
Hirose Electric USA, Inc. TM5RL-88(50)	Solder	Jack	1	90 °	8p8c (RJ45 Ethernet)	Does Not Contain LED	Unshielded	1	Through Hole	Down			Polybutylene Terephthalate (PBT)	-25 °C	60 °C	Phosphor Bronze	Gold
Hirose Electric USA, Inc. TM5RE3-66(20)	Solder	Jack	1	90 °	6p6c (RJ11 RJ12 RJ14 RJ25)	Does Not Contain LED	Unshielded	1	Through Hole	Side	Board Lock Panel Stops		Polybutylene Terephthalate (PBT)	-25 °C	60 °C	Phosphor Bronze	Gold
Hirose Electric USA, Inc. TM5RL-88-JJ(51)							Unshielded		Free Hanging (In-Line)									Thermoplastic	8p8c (RJ45) Jack	Coupler	Jack 8p8c (RJ45)
Hirose Electric USA, Inc. TM5RE2X-64(20)	Solder	Jack	1	90 °	6p4c	Does Not Contain LED	Unshielded	1	Through Hole	Down	Board Lock Panel Stops		Polybutylene Terephthalate (PBT)
Hirose Electric USA, Inc. TM5RF-44(50)	Solder	Jack	1	90 °	4p4c	Does Not Contain LED	Unshielded	1	Through Hole	Side	Board Lock Panel Stops		Polybutylene Terephthalate (PBT)	-25 °C	60 °C	Phosphor Bronze	Gold
Hirose Electric USA, Inc. TM5RA-44(50)	Solder	Jack	1	90 °	4p4c	Does Not Contain LED	Unshielded	1	Through Hole	Down			Polybutylene Terephthalate (PBT)			Phosphor Bronze	Gold
Hirose Electric USA, Inc. TM5RU1-64(50)	Solder	Jack	1	90 °	6p4c	Does Not Contain LED	Unshielded	1	Through Hole	Down			Polybutylene Terephthalate (PBT)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 2.46
		300	$ 2.16
		500	$ 2.09
		1000	$ 1.79
		2500	$ 1.66
		5000	$ 1.60
Newark	Each	1	$ 2.80
		1000	$ 2.48

Description

General part information

TM5R Series

Jack Modular Connector 6p6c (RJ11, RJ12, RJ14, RJ25) 90° Angle (Right) Unshielded
