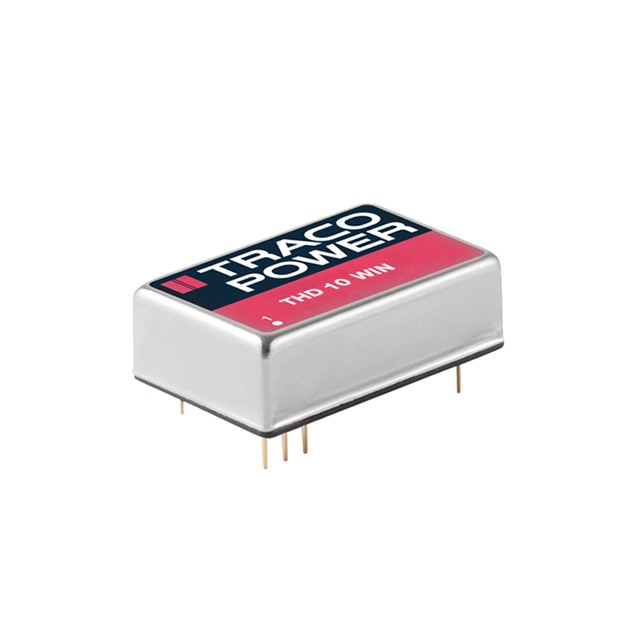

THD 10-2422WIN

Active

Traco Power

DC DC CONVERTER +/-12V 10W

Search across all available documentation for this part.

Active

Traco Power

DC DC CONVERTER +/-12V 10W

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Power (Watts)	Features	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Output 1	Applications	Efficiency	Number of Outputs	Voltage - Input (Min) [Min]	Type	Mounting Type	Voltage - Output 2
Traco Power THD 10-4815WIN	85 °C	-40 °C	9 PC Pad	24-DIP Module	10 W	OCP Remote On/Off SCP	75 V	416 mA	1.5 kV	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	24 V	ITE (Commercial)	87 %	1	18 V	Isolated Module	Through Hole
Traco Power THD 10-4811WIN	85 °C	-40 °C	9 PC Pad	24-DIP Module	10 W	OCP Remote On/Off SCP	75 V	2 A	1.5 kV	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	5.1 V	ITE (Commercial)	85 %	1	18 V	Isolated Module	Through Hole
Traco Power THD 10-2413N	85 °C	-40 °C	9 PC Pad	24-DIP Module	10 W	OCP Remote On/Off SCP	36 V	666 mA	1.5 kV	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	15 V	ITE (Commercial)	89 %	1	18 V	Isolated Module	Through Hole
Traco Power THD 10-2422WIN	85 °C	-40 °C	9 PC Pad	24-DIP Module	10 W	OCP Remote On/Off SCP	36 V	416 mA	1.5 kV	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	12 V	ITE (Commercial)	87 %	2	9 V	Isolated Module	Through Hole	-12 V
Traco Power THD 10-1222N	85 °C	-40 °C	9 PC Pad	24-DIP Module	10 W	OCP Remote On/Off SCP	18 V	416 mA	1.5 kV	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	12 V	ITE (Commercial)	88 %	2	9 V	Isolated Module	Through Hole	-12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 2 Output 12V -12V 416mA, 416mA 9V - 36V Input
