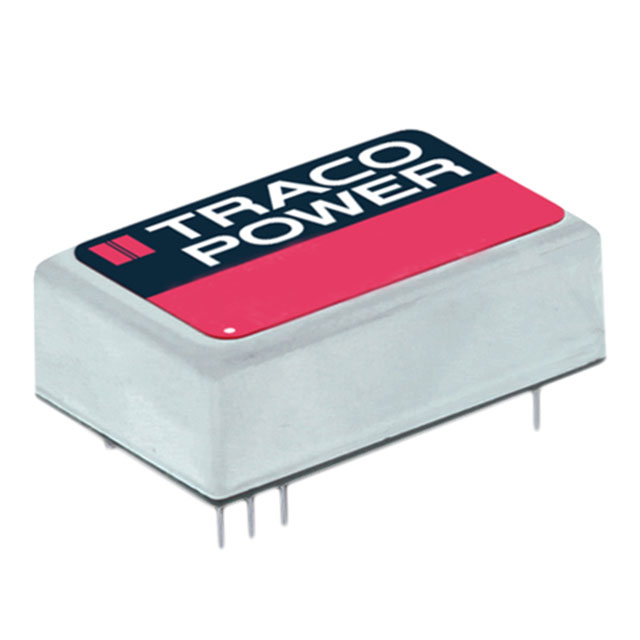

THD 10-2413N

Active

Traco Power

DC DC CONVERTER 15V 10W

Search across all available documentation for this part.

Active

Traco Power

DC DC CONVERTER 15V 10W

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Power (Watts)	Features	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Output 1	Applications	Efficiency	Number of Outputs	Voltage - Input (Min) [Min]	Type	Mounting Type	Voltage - Output 2
Traco Power THD 10-4815WIN	85 °C	-40 °C	9 PC Pad	24-DIP Module	10 W	OCP Remote On/Off SCP	75 V	416 mA	1.5 kV	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	24 V	ITE (Commercial)	87 %	1	18 V	Isolated Module	Through Hole
Traco Power THD 10-4811WIN	85 °C	-40 °C	9 PC Pad	24-DIP Module	10 W	OCP Remote On/Off SCP	75 V	2 A	1.5 kV	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	5.1 V	ITE (Commercial)	85 %	1	18 V	Isolated Module	Through Hole
Traco Power THD 10-2413N	85 °C	-40 °C	9 PC Pad	24-DIP Module	10 W	OCP Remote On/Off SCP	36 V	666 mA	1.5 kV	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	15 V	ITE (Commercial)	89 %	1	18 V	Isolated Module	Through Hole
Traco Power THD 10-2422WIN	85 °C	-40 °C	9 PC Pad	24-DIP Module	10 W	OCP Remote On/Off SCP	36 V	416 mA	1.5 kV	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	12 V	ITE (Commercial)	87 %	2	9 V	Isolated Module	Through Hole	-12 V
Traco Power THD 10-1222N	85 °C	-40 °C	9 PC Pad	24-DIP Module	10 W	OCP Remote On/Off SCP	18 V	416 mA	1.5 kV	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	12 V	ITE (Commercial)	88 %	2	9 V	Isolated Module	Through Hole	-12 V
