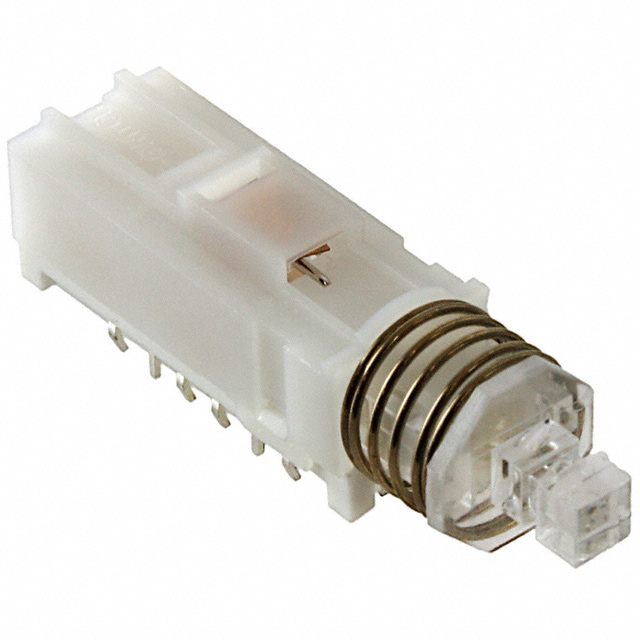

WBL4UEEGBQ

Active

E-Switch

SWITCH PUSH 4PDT 300MA 30V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PUSH 4PDT 300MA 30V

Technical Specifications

Parameters and characteristics for this part

Specification	WBL4UEEGBQ

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	4PDT
Current Rating (Amps)	300 mA
Illumination Type, Color [custom]	Blue/Green
Illumination Type, Color [custom]	LED
Illumination Voltage (Nominal)	3.5 VDC, 1.7 VDC
Mechanical Life	10000 Steps
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Switch Function	On-On
Termination Style	PC Pin
Type	Illuminated, Standard
Voltage Rating - DC	30 V

Part	Circuit	Current Rating (Amps)	Color - Actuator/Cap	Actuator Marking	Switch Function	Mechanical Life	Actuator Type	Illumination Type, Color	Termination Style	Voltage Rating - DC	Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Illumination Voltage (Nominal)	Illumination Type, Color [custom]	Illumination Type, Color [custom]
E-Switch WBL4UEEGQR05CLR	4PDT	300 mA	Clear	No Marking	On-On	10000 Steps	Button Round	Green LED	PC Pin	30 V	Illuminated Standard	-20 C	70 °C	Through Hole Right Angle	1.7 VDC
E-Switch WBL4UEEYQR05CLR	4PDT	300 mA	Clear	No Marking	On-On	10000 Steps	Button Round	LED Yellow	PC Pin	30 V	Illuminated Standard	-20 C	70 °C	Through Hole Right Angle	1.7 VDC
E-Switch WBL4UEEGBQ	4PDT	300 mA		No Marking	On-On	10000 Steps	Plunger for Cap		PC Pin	30 V	Illuminated Standard	-20 C	70 °C	Through Hole Right Angle	1.7 VDC 3.5 VDC	Blue/Green	LED
E-Switch WBL4UOARQ	4PDT	300 mA		No Marking	On-Mom	10000 Steps	Plunger for Cap	LED Red	PC Pin	30 V	Illuminated Standard	-20 C	70 °C	Through Hole Right Angle	1.7 VDC
E-Switch WBL4UEERBQ	4PDT	300 mA		No Marking	On-On	10000 Steps	Plunger for Cap	Blue/Red LED	PC Pin	30 V	Illuminated Standard	-20 C	70 °C	Through Hole Right Angle	1.7 VDC 3.5 VDC
E-Switch WBL4UOAGQ	4PDT	300 mA		No Marking	On-Mom	10000 Steps	Plunger for Cap	Green LED	PC Pin	30 V	Illuminated Standard	-20 C	70 °C	Through Hole Right Angle	1.7 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 2.89

General part information

Pushbutton Switch 4PDT Standard, Illuminated Through Hole, Right Angle
