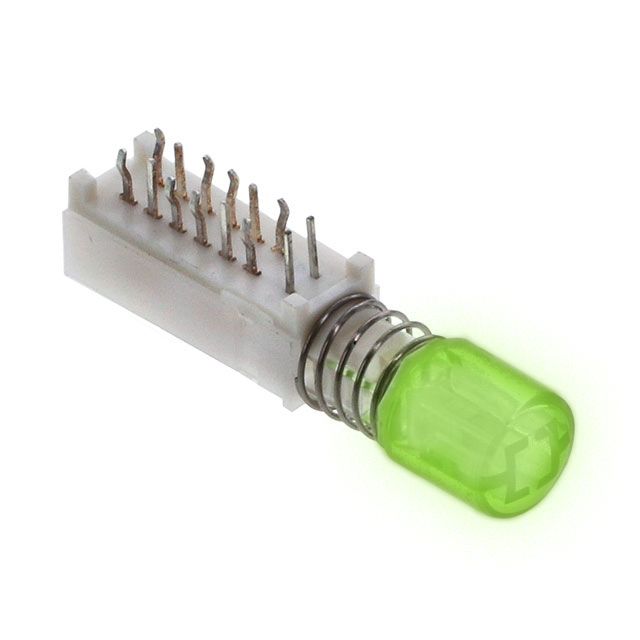

WBL4UEEGQR05CLR

Active

E-Switch

SWITCH: PUSH-BUTTON; POS: 2; 4PDT; 0.3A/30VDC; TRANSPARENT; THT; 2N

Search across all available documentation for this part.

Active

E-Switch

SWITCH: PUSH-BUTTON; POS: 2; 4PDT; 0.3A/30VDC; TRANSPARENT; THT; 2N

Technical Specifications

Parameters and characteristics for this part

Specification	WBL4UEEGQR05CLR

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	4PDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	300 mA
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	1.7 VDC
Mechanical Life	10000 Steps
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Switch Function	On-On
Termination Style	PC Pin
Type	Illuminated, Standard
Voltage Rating - DC	30 V

Part	Circuit	Current Rating (Amps)	Color - Actuator/Cap	Actuator Marking	Switch Function	Mechanical Life	Actuator Type	Illumination Type, Color	Termination Style	Voltage Rating - DC	Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Illumination Voltage (Nominal)	Illumination Type, Color [custom]	Illumination Type, Color [custom]
E-Switch WBL4UEEGQR05CLR	4PDT	300 mA	Clear	No Marking	On-On	10000 Steps	Button Round	Green LED	PC Pin	30 V	Illuminated Standard	-20 C	70 °C	Through Hole Right Angle	1.7 VDC
E-Switch WBL4UEEYQR05CLR	4PDT	300 mA	Clear	No Marking	On-On	10000 Steps	Button Round	LED Yellow	PC Pin	30 V	Illuminated Standard	-20 C	70 °C	Through Hole Right Angle	1.7 VDC
E-Switch WBL4UEEGBQ	4PDT	300 mA		No Marking	On-On	10000 Steps	Plunger for Cap		PC Pin	30 V	Illuminated Standard	-20 C	70 °C	Through Hole Right Angle	1.7 VDC 3.5 VDC	Blue/Green	LED
E-Switch WBL4UOARQ	4PDT	300 mA		No Marking	On-Mom	10000 Steps	Plunger for Cap	LED Red	PC Pin	30 V	Illuminated Standard	-20 C	70 °C	Through Hole Right Angle	1.7 VDC
E-Switch WBL4UEERBQ	4PDT	300 mA		No Marking	On-On	10000 Steps	Plunger for Cap	Blue/Red LED	PC Pin	30 V	Illuminated Standard	-20 C	70 °C	Through Hole Right Angle	1.7 VDC 3.5 VDC
E-Switch WBL4UOAGQ	4PDT	300 mA		No Marking	On-Mom	10000 Steps	Plunger for Cap	Green LED	PC Pin	30 V	Illuminated Standard	-20 C	70 °C	Through Hole Right Angle	1.7 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1176	$ 1.73

General part information

Pushbutton Switch 4PDT Standard, Illuminated Through Hole, Right Angle

Technical documentation and resources

No documents available
