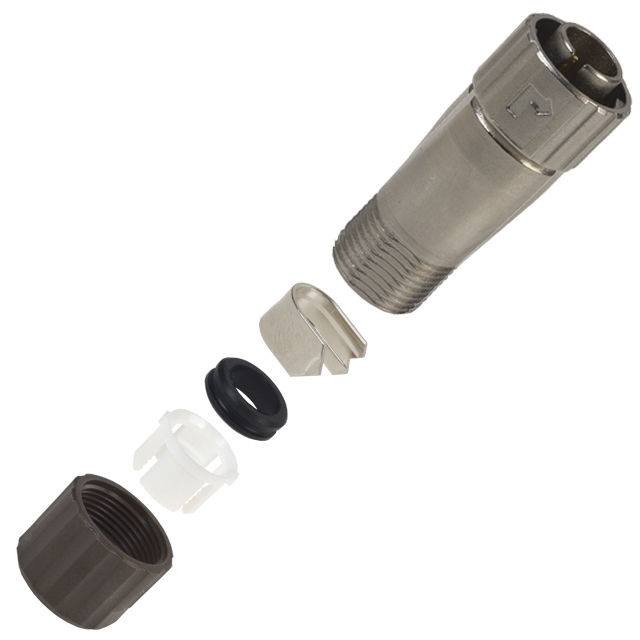

LF07WBP-6P

Obsolete

Hirose Electric USA, Inc.

CONN PLUG MALE 6P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LF07WBP-6P

Obsolete

Hirose Electric USA, Inc.

CONN PLUG MALE 6P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LF07WBP-6P

Applications	Telecommunications, Industrial
Backshell Material, Plating	Nickel, Zinc Alloy
Color	Brown, Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Material	Copper Alloy
Current Rating (Amps)	2 A
Fastening Type	Bayonet Lock
Features	Backshell, Strain Relief, Clamp, Coupling Nut
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	7
Shielding	Shielded
Voltage Rating	30 VAC, 42 VDC

LF07WBP Series

Part	Contact Finish - Mating	Primary Material	Mounting Type	Connector Type	Backshell Material, Plating	Applications	Shell Finish	Insert Material	Fastening Type	Shell Size - Insert	Material Flammability Rating	Shielding	Features	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Color	Ingress Protection	Shell Material	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Orientation	Number of Positions	Voltage Rating	Cable Opening [custom]	Cable Opening [custom]
Hirose Electric USA, Inc. LF07WBP-6P	Gold	Metal	Free Hanging (In-Line)	Male Pins Plug	Nickel Zinc Alloy	Industrial Telecommunications	Nickel	Polyphenylene Sulfide (PPS)	Bayonet Lock	7	UL94 V-0	Shielded	Backshell Clamp Coupling Nut Strain Relief	Copper Alloy	-25 °C	85 °C	Brown Silver	IP67/IP68 - Dust Tight Waterproof	Zinc Alloy	2 A	0.203 Ám	8 Áin	Keyed	6	30 VAC 42 VDC
Hirose Electric USA, Inc. LF07WBP-6S-A
Hirose Electric USA, Inc. LF07WBP-6S(31)	Gold	Metal	Free Hanging (In-Line)	Female Sockets Plug	Nickel Zinc Alloy	Industrial Telecommunications	Nickel	Polyphenylene Sulfide (PPS)	Bayonet Lock	7	UL94 V-0	Shielded	Backshell Cable Clamp Coupling Nut Strain Relief	Copper Alloy	-25 °C	85 °C	Brown Silver	IP67/IP68 - Dust Tight Waterproof	Zinc Alloy	2 A	0.2 Ám	7.87 Áin	Keyed	6	30 VAC 42 VDC	5 mm	0.197 in
Hirose Electric USA, Inc. LF07WBP-6P(31)	Gold	Metal	Free Hanging (In-Line)	Male Pins Plug	Nickel Zinc Alloy	Industrial Telecommunications	Nickel	Polyphenylene Sulfide (PPS)	Bayonet Lock	7	UL94 V-0	Shielded	Backshell Cable Clamp Coupling Nut Strain Relief	Copper Alloy	-25 °C	85 °C	Brown Silver	IP67/IP68 - Dust Tight Waterproof	Zinc Alloy	2 A	0.2 Ám	7.87 Áin	Keyed	6	30 VAC 42 VDC	5 mm	0.197 in
Hirose Electric USA, Inc. LF07WBP-3S(31)	Gold	Metal	Free Hanging (In-Line)	Female Sockets Plug	Nickel Zinc Alloy	Industrial Telecommunications	Nickel	Polyphenylene Sulfide (PPS)	Bayonet Lock	7	UL94 V-0	Shielded	Backshell Cable Clamp Coupling Nut Strain Relief	Copper Alloy	-25 °C	85 °C	Brown Silver	IP67/IP68 - Dust Tight Waterproof	Zinc Alloy	5 A	0.2 Ám	7.87 Áin	Keyed		125 VAC 175 VDC	5 mm	0.197 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

LF07WBP Series

6 Position Circular Connector Plug, Male Pins Solder Cup
