LF07WBP-6S(31)
ActiveHirose Electric USA, Inc.

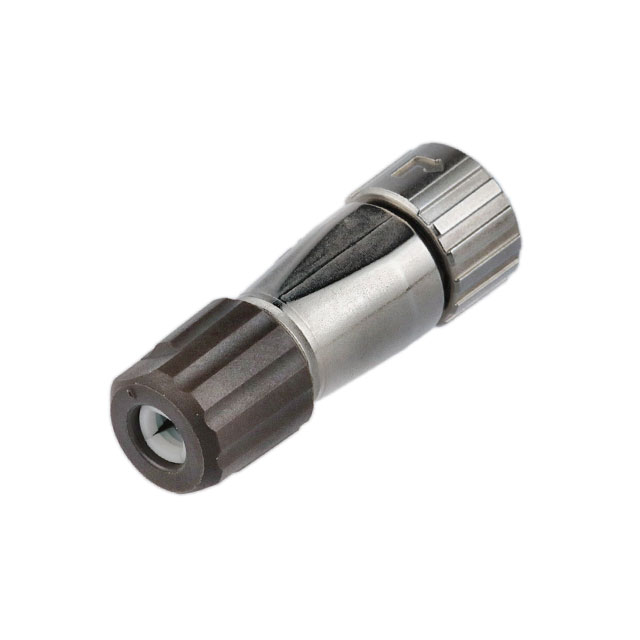

CONN PLUG FMALE 6P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LF07WBP-6S(31)
ActiveHirose Electric USA, Inc.
CONN PLUG FMALE 6P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LF07WBP-6S(31) |
|---|---|
| Applications | Telecommunications, Industrial |
| Backshell Material, Plating | Nickel, Zinc Alloy |
| Cable Opening [custom] | 5 mm |
| Cable Opening [custom] | 0.197 in |
| Color | Brown, Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 0.2 Ám |
| Contact Finish Thickness - Mating | 7.87 Áin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 2 A |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut, Backshell, Cable Clamp, Strain Relief |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | 7 |
| Shielding | Shielded |
| Voltage Rating | 30 VAC, 42 VDC |
LF07WBP Series
| Part | Contact Finish - Mating | Primary Material | Mounting Type | Connector Type | Backshell Material, Plating | Applications | Shell Finish | Insert Material | Fastening Type | Shell Size - Insert | Material Flammability Rating | Shielding | Features | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Ingress Protection | Shell Material | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Orientation | Number of Positions | Voltage Rating | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | Gold | Metal | Free Hanging (In-Line) | Male Pins Plug | Nickel Zinc Alloy | Industrial Telecommunications | Nickel | Polyphenylene Sulfide (PPS) | Bayonet Lock | 7 | UL94 V-0 | Shielded | Backshell Clamp Coupling Nut Strain Relief | Copper Alloy | -25 °C | 85 °C | Brown Silver | IP67/IP68 - Dust Tight Waterproof | Zinc Alloy | 2 A | 0.203 Ám | 8 Áin | Keyed | 6 | 30 VAC 42 VDC | ||
Hirose Electric USA, Inc. | |||||||||||||||||||||||||||
Hirose Electric USA, Inc. | Gold | Metal | Free Hanging (In-Line) | Female Sockets Plug | Nickel Zinc Alloy | Industrial Telecommunications | Nickel | Polyphenylene Sulfide (PPS) | Bayonet Lock | 7 | UL94 V-0 | Shielded | Backshell Cable Clamp Coupling Nut Strain Relief | Copper Alloy | -25 °C | 85 °C | Brown Silver | IP67/IP68 - Dust Tight Waterproof | Zinc Alloy | 2 A | 0.2 Ám | 7.87 Áin | Keyed | 6 | 30 VAC 42 VDC | 5 mm | 0.197 in |
Hirose Electric USA, Inc. | Gold | Metal | Free Hanging (In-Line) | Male Pins Plug | Nickel Zinc Alloy | Industrial Telecommunications | Nickel | Polyphenylene Sulfide (PPS) | Bayonet Lock | 7 | UL94 V-0 | Shielded | Backshell Cable Clamp Coupling Nut Strain Relief | Copper Alloy | -25 °C | 85 °C | Brown Silver | IP67/IP68 - Dust Tight Waterproof | Zinc Alloy | 2 A | 0.2 Ám | 7.87 Áin | Keyed | 6 | 30 VAC 42 VDC | 5 mm | 0.197 in |
Hirose Electric USA, Inc. | Gold | Metal | Free Hanging (In-Line) | Female Sockets Plug | Nickel Zinc Alloy | Industrial Telecommunications | Nickel | Polyphenylene Sulfide (PPS) | Bayonet Lock | 7 | UL94 V-0 | Shielded | Backshell Cable Clamp Coupling Nut Strain Relief | Copper Alloy | -25 °C | 85 °C | Brown Silver | IP67/IP68 - Dust Tight Waterproof | Zinc Alloy | 5 A | 0.2 Ám | 7.87 Áin | Keyed | 125 VAC 175 VDC | 5 mm | 0.197 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.18 | |
| 10 | $ 14.76 | |||
| 25 | $ 13.36 | |||
| 50 | $ 12.41 | |||
| 100 | $ 11.54 | |||
| 250 | $ 10.53 | |||
| 500 | $ 9.85 | |||
| 1000 | $ 9.25 | |||
Description
General part information
LF07WBP Series
6 Position Circular Connector Plug, Female Sockets Solder Cup
