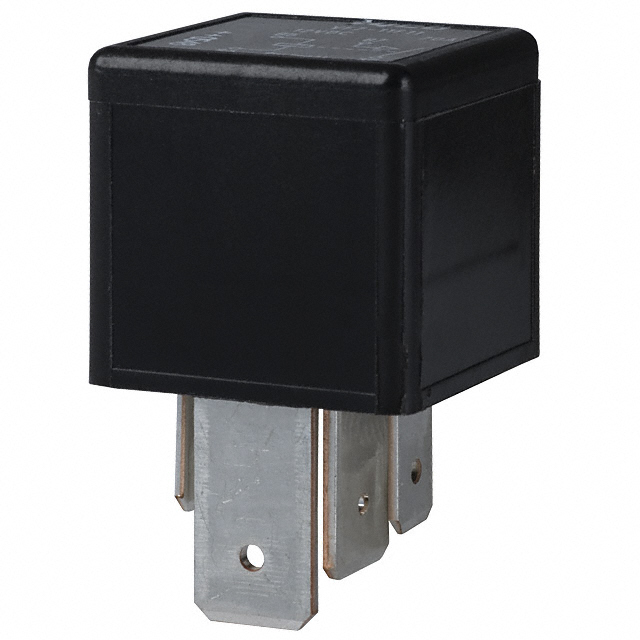

VF7-11F11
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY AUTOMOTIVE SPST 70A 12V
Deep-Dive with AI
Search across all available documentation for this part.
VF7-11F11
ObsoleteTE Connectivity Potter & Brumfield Relays
RELAY AUTOMOTIVE SPST 70A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VF7-11F11 |
|---|---|
| Coil Current | 167 mA |
| Coil Power | 1.6 W |
| Coil Resistance | 90 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 70 A |
| Mounting Type | Socketable |
| Must Operate Voltage | 7.2 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 7 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 2 ms |
| Switching Voltage | 14 VDC |
| Termination Style | Plug In, Quick Connect - 0.250" (6.3mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
VF7 Series
RELAY AUTOMOTIVE SPST 70A 12V
