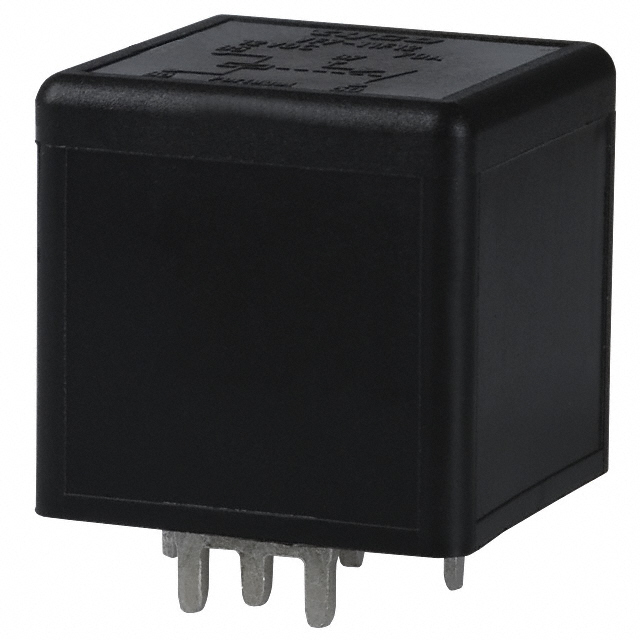

VF7-11F12

Active

TE Connectivity Potter & Brumfield Relays

RELAY AUTOMOTIVE SPST 70A 12V

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY AUTOMOTIVE SPST 70A 12V

Technical Specifications

Parameters and characteristics for this part

Part	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Coil Current	Coil Voltage	Release Time	Mounting Type	Coil Type	Operate Time	Must Operate Voltage	Termination Style	Coil Power	Must Release Voltage	Contact Material	Contact Form	Contact Rating (Current)	Switching Voltage
TE Connectivity Potter & Brumfield Relays VF7-11H12	288 Ohms	125 °C	-40 °C	83.3 mA	24 VDC	2 ms	Through Hole	Non Latching	7 ms	14.4 VDC	PC Pin	2 W	2.4 VDC	Silver Nickel (AgNi)	SPST-NO (1 Form A)	70 A	14 VDC
TE Connectivity Potter & Brumfield Relays VF7-11F12	90 Ohms	125 °C	-40 °C	167 mA	12 VDC	2 ms	Through Hole	Non Latching	7 ms	7.2 VDC	PC Pin	1.6 W	1.2 VDC	Silver Nickel (AgNi)	SPST-NO (1 Form A)	70 A	14 VDC
TE Connectivity Potter & Brumfield Relays VF7-11F11	90 Ohms	125 °C	-40 °C	167 mA	12 VDC	2 ms	Socketable	Non Latching	7 ms	7.2 VDC	Plug In Quick Connect - 0.250" (6.3mm)	1.6 W	1.2 VDC	Silver Nickel (AgNi)	SPST-NO (1 Form A)	70 A	14 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY AUTOMOTIVE SPST 70A 12V
