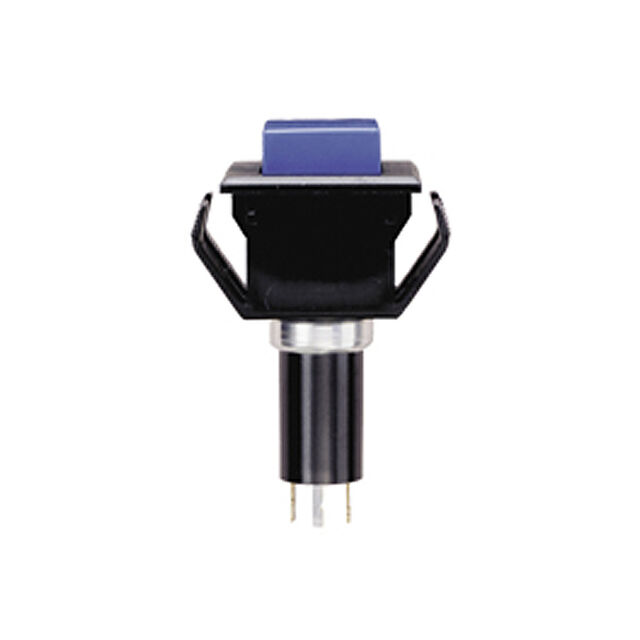

46-05-05-502-07
ActiveGrayhill Inc.
SWITCH PUSH SPDT 0.25A 115V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
46-05-05-502-07
ActiveGrayhill Inc.
SWITCH PUSH SPDT 0.25A 115V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 46-05-05-502-07 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 250 mA |
| Electrical Life | 250000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Panel Cutout Dimensions [x] | 13.1 mm |
| Panel Cutout Dimensions [y] | 11.17 mm |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 115 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 47.06 | |
| 10 | $ 40.59 | |||
| 25 | $ 38.27 | |||
| 50 | $ 36.59 | |||
| 100 | $ 34.99 | |||
| 250 | $ 32.97 | |||
Description
General part information
46-05 Series
Pushbutton Switch SPDT Standard Panel Mount, Front
