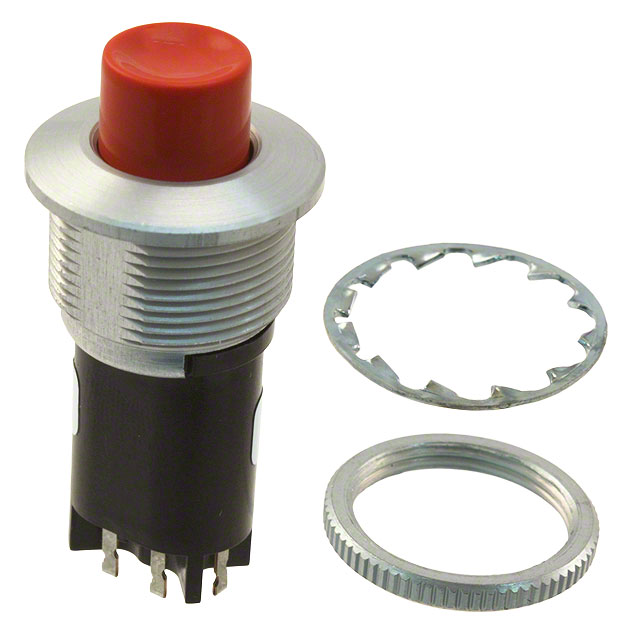

46-05-08-502-03

Active

Grayhill Inc.

SWITCH PUSH DPDT 0.25A 115V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH PUSH DPDT 0.25A 115V

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Actuator Marking	Electrical Life	Current Rating (Amps)	Voltage Rating - AC	Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Mounting Type	Color - Actuator/Cap	Switch Function
Grayhill Inc. 46-05-08-502-03	Solder Lug	No Marking	250000 Cycles	250 mA	115 V	Standard	16.28 mm	14.35 mm	Button Round	85 °C	-40 °C	DPDT	Panel Mount Front	Red	On-Mom
Grayhill Inc. 46-05-05-502-07	Solder Lug	No Marking	250000 Cycles	250 mA	115 V	Standard	13.1 mm	11.17 mm	Button Round	85 °C	-40 °C	SPDT	Panel Mount Front	Black	On-Mom
Grayhill Inc. 46-05-05-502-01	Solder Lug	No Marking	250000 Cycles	250 mA	115 V	Standard	13.1 mm	11.17 mm	Button Round	85 °C	-40 °C	SPDT	Panel Mount Front	White	On-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPDT Standard Panel Mount, Front
