M1BXK-3440K

Active

3M (TC)

IDC CABLE - MSR34K/MC34F/X

Deep-Dive with AI

Search across all available documentation for this part.

Documents1700 Series Ribbon Cable Assembly Length Guide +1

M1BXK-3440K

Active

3M (TC)

IDC CABLE - MSR34K/MC34F/X

Deep-Dive with AI

Documents1700 Series Ribbon Cable Assembly Length Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M1BXK-3440K

Cable Termination	IDC
Color	Multiple, Twisted Pair (Flat)
Connector Type	Socket to Cable
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Strain Relief
Length [x]	1.02 m
Length [x]	3.34 ft
Number of Positions	34
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M1BXK Series

Part	Length [x]	Length [x]	Pitch - Cable	Pitch - Cable	Color	Features	Cable Termination	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Connector Type	Shielding	Number of Rows	Pitch - Connector	Pitch - Connector
3M (TC) M1BXK-4036R	3 ft	914.4 mm	0.05 "	1.27 mm	Multiple Ribbon	Strain Relief	IDC	Gold	0.76 Ám	30 Áin	40	Socket to Cable	Unshielded	2	0.1 in	2.54 mm
3M (TC) M1BXK-6036J	3 ft	914.4 mm	0.05 "	1.27 mm		Strain Relief	IDC	Gold	0.76 Ám	30 Áin	60	Socket to Cable	Unshielded	2	0.1 in	2.54 mm
3M (TC) M1BXK-3036R	3 ft	914.4 mm	0.05 "	1.27 mm	Multiple Ribbon	Strain Relief	IDC	Gold	0.76 Ám	30 Áin	30	Socket to Cable	Unshielded	2	0.1 in	2.54 mm
3M (TC) M1BXK-6036R	3 ft	914.4 mm	0.05 "	1.27 mm	Multiple Ribbon	Strain Relief	IDC	Gold	0.76 Ám	30 Áin	60	Socket to Cable	Unshielded	2	0.1 in	2.54 mm
3M (TC) M1BXK-1040K	3.34 ft	1.02 m	0.05 "	1.27 mm	Multiple Twisted Pair (Flat)	Strain Relief	IDC	Gold	0.76 Ám	30 Áin	10	Socket to Cable	Unshielded	2	0.1 in	2.54 mm
3M (TC) M1BXK-2040K	3.34 ft	1.02 m	0.05 "	1.27 mm	Multiple Twisted Pair (Flat)	Strain Relief	IDC	Gold	0.76 Ám	30 Áin	20	Socket to Cable	Unshielded	2	0.1 in	2.54 mm
3M (TC) M1BXK-1036J	3 ft	914.4 mm	0.05 "	1.27 mm		Strain Relief	IDC	Gold	0.76 Ám	30 Áin	10	Socket to Cable	Unshielded	2	0.1 in	2.54 mm
3M (TC) M1BXK-3440K	3.34 ft	1.02 m	0.05 "	1.27 mm	Multiple Twisted Pair (Flat)	Strain Relief	IDC	Gold	0.76 Ám	30 Áin	34	Socket to Cable	Unshielded	2	0.1 in	2.54 mm
3M (TC) M1BXK-6040K	3.34 ft	1.02 m	0.05 "	1.27 mm	Multiple Twisted Pair (Flat)	Strain Relief	IDC	Gold	0.76 Ám	30 Áin	60	Socket to Cable	Unshielded	2	0.1 in	2.54 mm
3M (TC) M1BXK-2436J	3 ft	914.4 mm	0.05 "	1.27 mm		Strain Relief	IDC	Gold	0.76 Ám	30 Áin	24	Socket to Cable	Unshielded	2	0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.10
		10	$ 19.35
		25	$ 17.52
		50	$ 16.29
		100	$ 15.17
		250	$ 13.85
		500	$ 12.96

Description

General part information

M1BXK Series

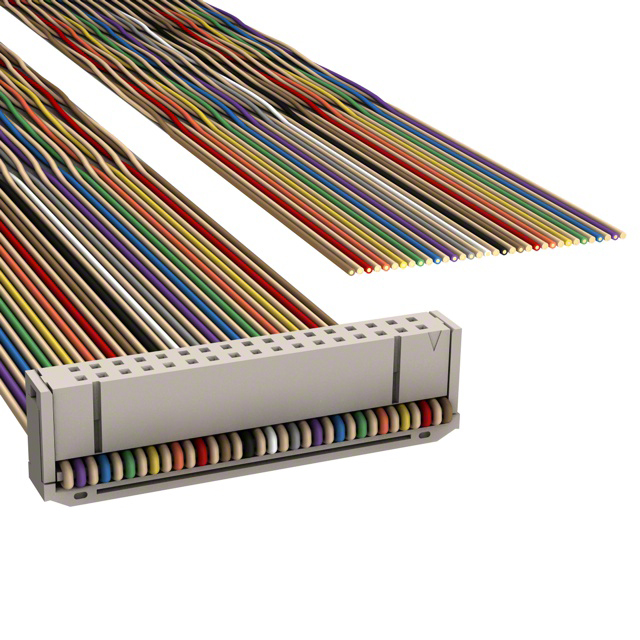

34 Position Cable Assembly Rectangular Socket to Cable 3.34' (1.02m)

Documents

Technical documentation and resources

1700 Series

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet
