M1BXK-6036R

Active

3M (TC)

IDC CABLE - MSR60K/MC60M/X

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3302 Series +1

M1BXK-6036R

Active

3M (TC)

IDC CABLE - MSR60K/MC60M/X

Deep-Dive with AI

DocumentsDatasheet 3302 Series +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M1BXK-6036R

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Cable
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Strain Relief
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	60
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M1BXK Series

Part	Length [x]	Length [x]	Pitch - Cable	Pitch - Cable	Color	Features	Cable Termination	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Connector Type	Shielding	Number of Rows	Pitch - Connector	Pitch - Connector
3M (TC) M1BXK-4036R	3 ft	914.4 mm	0.05 "	1.27 mm	Multiple Ribbon	Strain Relief	IDC	Gold	0.76 Ám	30 Áin	40	Socket to Cable	Unshielded	2	0.1 in	2.54 mm
3M (TC) M1BXK-6036J	3 ft	914.4 mm	0.05 "	1.27 mm		Strain Relief	IDC	Gold	0.76 Ám	30 Áin	60	Socket to Cable	Unshielded	2	0.1 in	2.54 mm
3M (TC) M1BXK-3036R	3 ft	914.4 mm	0.05 "	1.27 mm	Multiple Ribbon	Strain Relief	IDC	Gold	0.76 Ám	30 Áin	30	Socket to Cable	Unshielded	2	0.1 in	2.54 mm
3M (TC) M1BXK-6036R	3 ft	914.4 mm	0.05 "	1.27 mm	Multiple Ribbon	Strain Relief	IDC	Gold	0.76 Ám	30 Áin	60	Socket to Cable	Unshielded	2	0.1 in	2.54 mm
3M (TC) M1BXK-1040K	3.34 ft	1.02 m	0.05 "	1.27 mm	Multiple Twisted Pair (Flat)	Strain Relief	IDC	Gold	0.76 Ám	30 Áin	10	Socket to Cable	Unshielded	2	0.1 in	2.54 mm
3M (TC) M1BXK-2040K	3.34 ft	1.02 m	0.05 "	1.27 mm	Multiple Twisted Pair (Flat)	Strain Relief	IDC	Gold	0.76 Ám	30 Áin	20	Socket to Cable	Unshielded	2	0.1 in	2.54 mm
3M (TC) M1BXK-1036J	3 ft	914.4 mm	0.05 "	1.27 mm		Strain Relief	IDC	Gold	0.76 Ám	30 Áin	10	Socket to Cable	Unshielded	2	0.1 in	2.54 mm
3M (TC) M1BXK-3440K	3.34 ft	1.02 m	0.05 "	1.27 mm	Multiple Twisted Pair (Flat)	Strain Relief	IDC	Gold	0.76 Ám	30 Áin	34	Socket to Cable	Unshielded	2	0.1 in	2.54 mm
3M (TC) M1BXK-6040K	3.34 ft	1.02 m	0.05 "	1.27 mm	Multiple Twisted Pair (Flat)	Strain Relief	IDC	Gold	0.76 Ám	30 Áin	60	Socket to Cable	Unshielded	2	0.1 in	2.54 mm
3M (TC) M1BXK-2436J	3 ft	914.4 mm	0.05 "	1.27 mm		Strain Relief	IDC	Gold	0.76 Ám	30 Áin	24	Socket to Cable	Unshielded	2	0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.80
		10	$ 25.33
		25	$ 22.96
		50	$ 21.36
		100	$ 19.90
		250	$ 18.19
		500	$ 17.04

Description

General part information

M1BXK Series

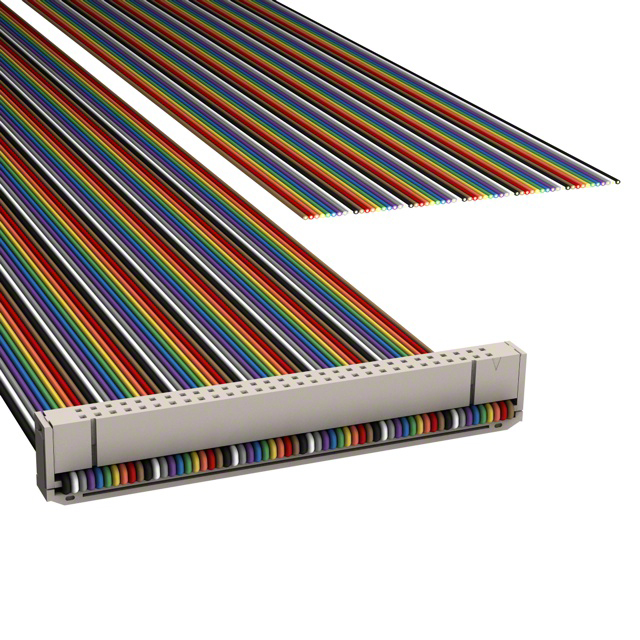

60 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)
