09365162702

Active

HARTING Technology Group

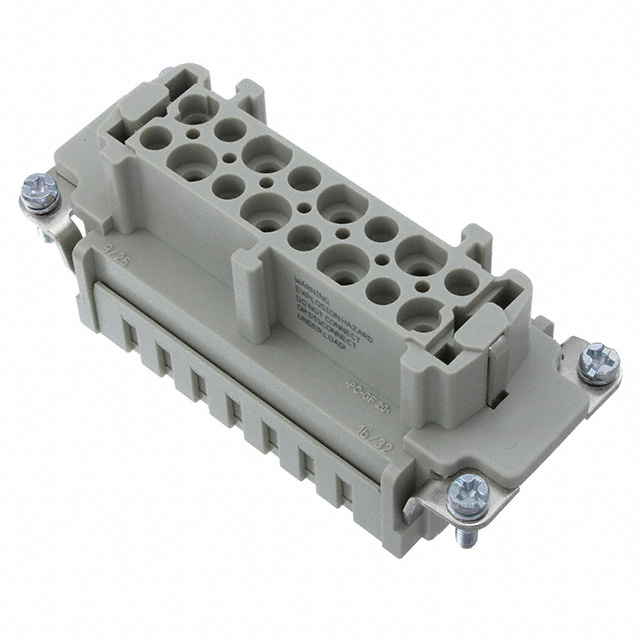

HEAVY DUTY CONNECTOR, HAN EX SERIES, INSERT, 15+PE CONTACTS, 16B, RECEPTACLE

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN EX SERIES, INSERT, 15+PE CONTACTS, 16B, RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Part	Current Rating (Amps)	Voltage Rating	Contact Type	Color	Gender	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Connector Type	Size	Housing Material	Contact Finish	Contact Material	Material Flammability Rating
HARTING Technology Group 09365162702	16 A	90 V	Han® E	Gray	Female	16+Ground	-20 C	40 °C	Crimp	Insert without Contacts	16 B	Polycarbonate (PC)
HARTING Technology Group 09365162601	16 A	90 V		Gray	Male	16+Ground	-20 C	40 °C	Screw		16 B	Polycarbonate (PC)	Silver	Copper Alloy	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert without Contacts Gray 16+Ground Position Crimp
