09365162601

Active

HARTING Technology Group

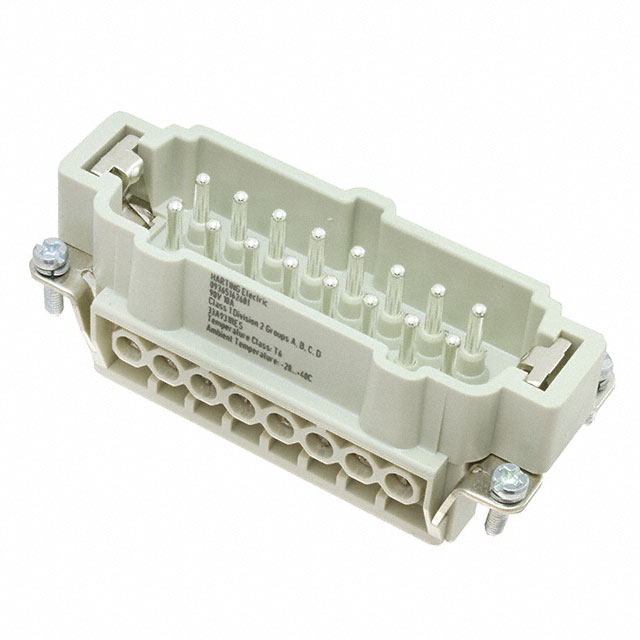

HEAVY DUTY CONNECTOR, HAN EX SERIES, INSERT, 15+PE CONTACTS, 16B, PLUG, SCREW PIN

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN EX SERIES, INSERT, 15+PE CONTACTS, 16B, PLUG, SCREW PIN

Technical Specifications

Parameters and characteristics for this part

Specification	09365162601

Color	Gray
Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	16 A
Gender	Male
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	16+Ground
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Size	16 B
Termination Style	Screw
Voltage Rating	90 V

Part	Current Rating (Amps)	Voltage Rating	Contact Type	Color	Gender	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Connector Type	Size	Housing Material	Contact Finish	Contact Material	Material Flammability Rating
HARTING Technology Group 09365162702	16 A	90 V	Han® E	Gray	Female	16+Ground	-20 C	40 °C	Crimp	Insert without Contacts	16 B	Polycarbonate (PC)
HARTING Technology Group 09365162601	16 A	90 V		Gray	Male	16+Ground	-20 C	40 °C	Screw		16 B	Polycarbonate (PC)	Silver	Copper Alloy	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert Gray 16+Ground Position Screw
