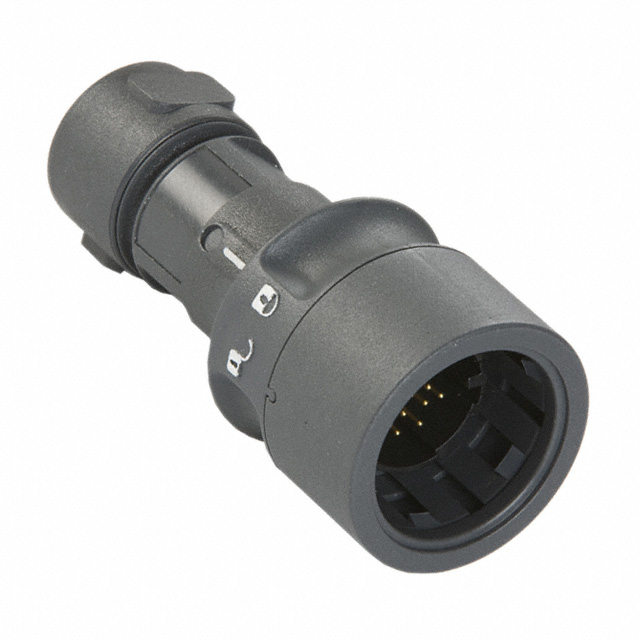

PXP6010/22P/CR/0910

Active

BULGIN LIMITED

CONNECTOR: CIRCULAR; PLUG; MALE; PIN: 22; 2A; 277V; W/O CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 6000 Series - Ethernet Buccaneer +5

PXP6010/22P/CR/0910

Active

BULGIN LIMITED

CONNECTOR: CIRCULAR; PLUG; MALE; PIN: 22; 2A; 277V; W/O CONTACTS

Deep-Dive with AI

DocumentsDatasheet 6000 Series - Ethernet Buccaneer +5

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PXP6010/22P/CR/0910

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp and Solder Cup
Fastening Type	Push-Twist
Features	Coupling Nut, Backshell
Housing Color	Gray
Ingress Protection	IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	22
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polycarbonate/Polybutylene Terephthalate (PBT), Halogen Free
Shielding	Unshielded
Type	For Male Pins

PXP6010 Series

Part	Material Flammability Rating	Primary Material	Type	Ingress Protection	Features	Contact Shape	Shielding	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Shell Material	Mounting Type	Note	Connector Type	Number of Positions	Orientation	Fastening Type	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Contact Material	Color	Voltage Rating	Current Rating (Amps)	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Contact Finish - Mating	Termination
BULGIN LIMITED PXP6010/02S/CR/0405	UL94 V-0	Plastic	For Female Sockets	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Backshell Coupling Nut	Circular	Unshielded	Crimp and Solder Cup	-40 °C	120 °C	Gray	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Free Hanging (In-Line)	Contacts Not Included	Plug Housing	2	Keyed	Push-Twist
BULGIN LIMITED PXP6010/03S/CR/0709	UL94 V-0	Plastic	For Female Sockets	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Backshell Coupling Nut	Circular	Unshielded	Crimp and Solder Cup	-40 °C	120 °C	Gray	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Free Hanging (In-Line)	Contacts Not Included	Plug Housing		Keyed	Push-Twist	3	1	2
BULGIN LIMITED PXP6010/22S/CR/0709	UL94 V-0	Plastic	For Female Sockets	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Backshell Coupling Nut	Circular	Unshielded	Crimp and Solder Cup	-40 °C	120 °C	Gray	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Free Hanging (In-Line)	Contacts Not Included	Plug Housing	22	Keyed	Push-Twist
BULGIN LIMITED PXP6010/22P/CR/0910	UL94 V-0	Plastic	For Male Pins	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Backshell Coupling Nut	Circular	Unshielded	Crimp and Solder Cup	-40 °C	120 °C	Gray	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Free Hanging (In-Line)	Contacts Not Included	Plug Housing	22	Keyed	Push-Twist
BULGIN LIMITED PXP6010/03P/CR/0910	UL94 V-0	Plastic	For Male Pins	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Backshell Coupling Nut	Circular	Unshielded	Crimp and Solder Cup	-40 °C	120 °C	Gray	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Free Hanging (In-Line)	Contacts Not Included	Plug Housing		Keyed	Push-Twist	3	1	2
BULGIN LIMITED PXP6010/08S/CR/0709	UL94 V-0	Plastic	For Female Sockets	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Backshell Coupling Nut	Circular	Unshielded	Crimp and Solder Cup	-40 °C	120 °C	Gray	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Free Hanging (In-Line)	Contacts Not Included	Plug Housing	8	Keyed	Push-Twist
BULGIN LIMITED PXP6010/22S/CR/0507	UL94 V-0	Plastic	For Female Sockets	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Backshell Coupling Nut	Circular	Unshielded	Crimp and Solder Cup	-40 °C	120 °C	Gray	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Free Hanging (In-Line)	Contacts Not Included	Plug Housing	22	Keyed	Push-Twist
BULGIN LIMITED PXP6010/22P/CR/0405	UL94 V-0	Plastic	For Male Pins	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Backshell Coupling Nut	Circular	Unshielded	Crimp and Solder Cup	-40 °C	120 °C	Gray	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Free Hanging (In-Line)	Contacts Not Included	Plug Housing	22	Keyed	Push-Twist
BULGIN LIMITED PXP6010/02S/ST/0910	UL94 V-0	Plastic		Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Coupling Nut UV Resistant		Unshielded		-40 °C	120 °C		Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Free Hanging (In-Line)		Receptacle Female Sockets	2	Keyed	Push-Twist				Brass	Gray	277 VAC/DC	16 A	9 mm	0.394 in	10 mm	0.354 in	Nickel	Screw
BULGIN LIMITED PXP6010/16S/CR/0507	UL94 V-0	Plastic	For Female Sockets	Dust Tight Water Resistant Waterproof IP66 IP68 IP69K	Backshell Coupling Nut	Circular	Unshielded	Crimp and Solder Cup	-40 °C	120 °C	Gray	Polycarbonate/Polybutylene Terephthalate (PBT) Halogen Free	Free Hanging (In-Line)	Contacts Not Included	Plug Housing	16	Keyed	Push-Twist

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.71
		10	$ 16.21
		25	$ 15.37
		50	$ 15.14
		100	$ 13.36
		250	$ 12.47
		500	$ 12.20
Newark	Each	1	$ 18.66
TME	N/A	1	$ 19.66
		10	$ 16.08
		20	$ 15.09
		50	$ 13.92
		100	$ 13.12
		250	$ 12.19

Description

General part information

PXP6010 Series

22 (Power) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
