TB3MS
ActiveSwitchcraft Inc.

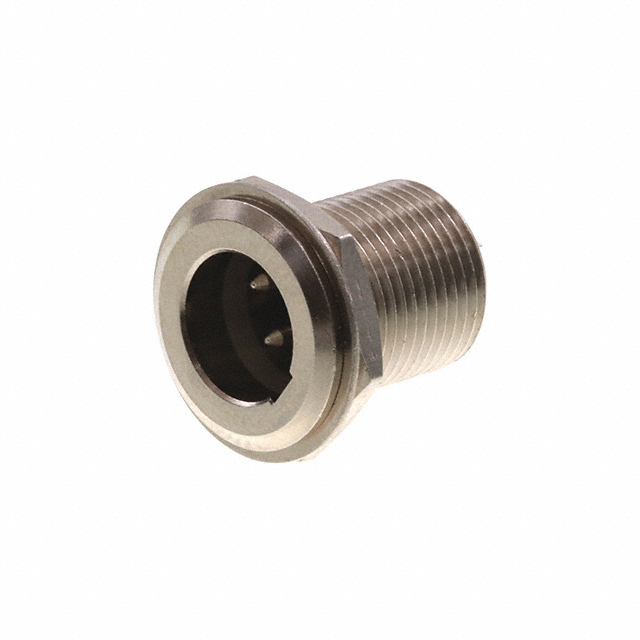

CONN RCPT ML MINI XLR 3P SDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TB3MS
ActiveSwitchcraft Inc.
CONN RCPT ML MINI XLR 3P SDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TB3MS |
|---|---|
| Applications | Audio, Medical |
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A |
| Fastening Type | Latch Lock |
| Ingress Protection | IP66, IP65 |
| Insert Material | Thermoplastic |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Copper Alloy |
| Shell Size - Insert | Mini XLR |
| Voltage Rating | 125 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 23.26 | |
| 10 | $ 17.93 | |||
| 25 | $ 16.23 | |||
| 50 | $ 15.08 | |||
| 100 | $ 14.04 | |||
| 250 | $ 12.82 | |||
| 500 | $ 11.99 | |||
Description
General part information
TB3M Series
3 Position Circular Connector Receptacle, Male Pins Solder Cup
