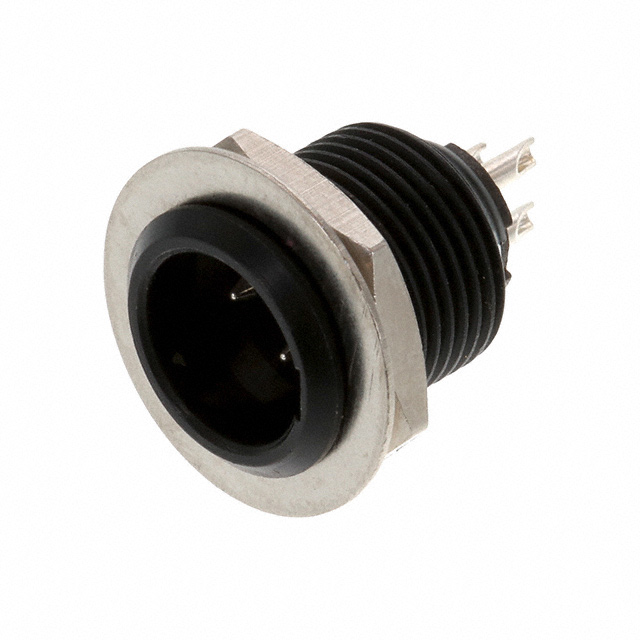

CONN RCPT ML MINI XLR 3P SDR CUP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT ML MINI XLR 3P SDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	TB3MB

Applications	Audio
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Latch Lock
Features	Ground
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Copper Alloy
Shell Size - Insert	Mini XLR
Voltage Rating	125 VAC

Part	Shell Size - Insert	Color	Contact Finish - Mating	Contact Material	Orientation	Shell Finish	Voltage Rating	Material Flammability Rating	Current Rating (Amps)	Connector Type	Applications	Primary Material	Shell Material	Mounting Feature	Insert Material	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Ingress Protection
Switchcraft Inc. TB3MB	Mini XLR	Black	Silver	Copper Alloy	Keyed	Chrome	125 VAC	UL94 V-0	5 A	Male Pins Receptacle	Audio	Metal	Copper Alloy	Bulkhead - Rear Side Nut	Thermoplastic	Latch Lock	85 °C	-55 °C	Ground
Switchcraft Inc. TB3MS	Mini XLR	Silver	Silver	Copper Alloy	Keyed	Nickel	125 VAC		5 A	Male Pins Receptacle	Audio Medical	Metal	Copper Alloy	Bulkhead - Rear Side Nut	Thermoplastic	Latch Lock				IP65 IP66

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 10.54

General part information

3 Position Circular Connector Receptacle, Male Pins Solder Cup
