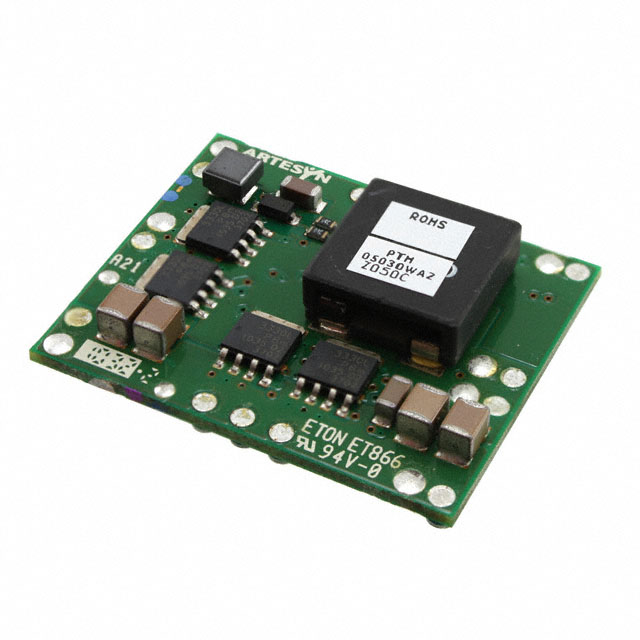

PTH05030WAZ
ObsoleteARTESYN / Advanced Energy
CONV DC/DC 5VIN ADJ OUT 30A SMD
Deep-Dive with AI
Search across all available documentation for this part.
PTH05030WAZ
ObsoleteARTESYN / Advanced Energy
CONV DC/DC 5VIN ADJ OUT 30A SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PTH05030WAZ |
|---|---|
| Current - Output (Max) [Max] | 30 A |
| Efficiency | 94 % |
| Features | UVLO |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 13-SMD Module |
| Size / Dimension [x] | 34.8 mm |
| Size / Dimension [x] | 1.37 in |
| Size / Dimension [y] | 1.12 in |
| Size / Dimension [y] | 28.4 mm |
| Size / Dimension [z] | 0.35 " |
| Size / Dimension [z] | 8.9 mm |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output 1 [Max] | 3.6 V |
| Voltage - Output 1 [Min] | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 30.40 | |
| 5 | $ 28.66 | |||
| 10 | $ 27.94 | |||
| 25 | $ 27.02 | |||
| 40 | $ 26.56 | |||
| 80 | $ 25.89 | |||
| 230 | $ 24.91 | |||
Description
General part information
PTH05030 Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 3.6V 30A 4.5V - 5.5V Input
