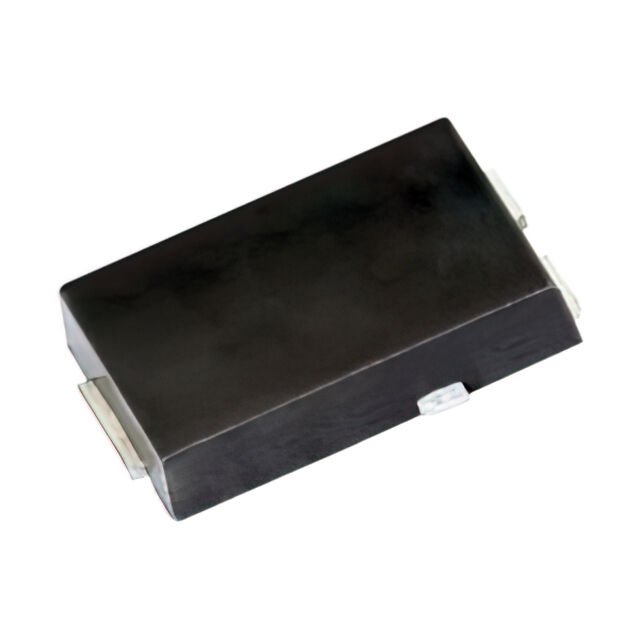

VS-10CSH01-M3/86A
ActiveVishay General Semiconductor - Diodes Division
DIODE ARRAY GP 100V 5A TO277A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VS-10CSH01-M3/86A |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 5 A |
| Current - Reverse Leakage @ Vr | 2 µA |
| Diode Configuration | 1 Pair Common Cathode |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 175 °C |
| Package / Case | 3-PowerDFN, TO-277 |
| Reverse Recovery Time (trr) | 25 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | TO-277A (SMPC) |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 980 mV |
