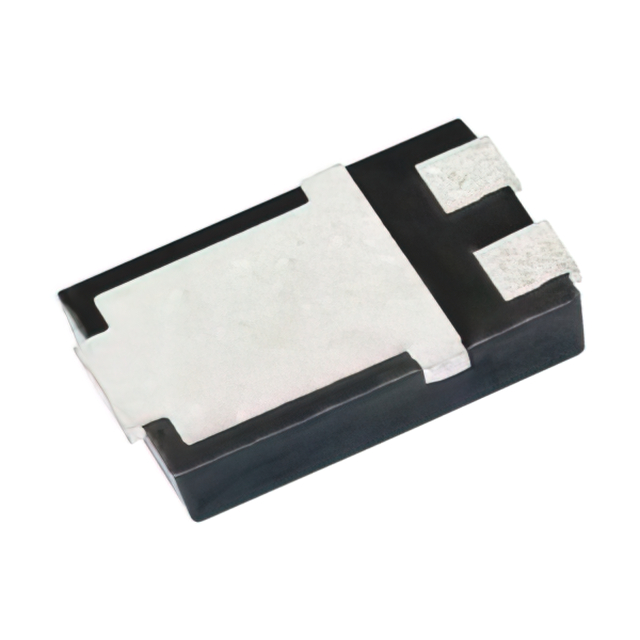

VS-10CSH01HM3/87A
ActiveVishay General Semiconductor - Diodes Division
DIODE ARRAY GP 100V 5A TO277A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VS-10CSH01HM3/87A
ActiveVishay General Semiconductor - Diodes Division
DIODE ARRAY GP 100V 5A TO277A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VS-10CSH01HM3/87A |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 5 A |
| Current - Reverse Leakage @ Vr | 2 µA |
| Diode Configuration | 1 Pair Common Cathode |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 175 °C |
| Package / Case | 3-PowerDFN, TO-277 |
| Qualification | AEC-Q101 |
| Reverse Recovery Time (trr) | 25 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | TO-277A (SMPC) |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 980 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.84 | |
| 10 | $ 0.69 | |||
| 100 | $ 0.53 | |||
| 500 | $ 0.45 | |||
| 1000 | $ 0.37 | |||
| 2000 | $ 0.35 | |||
| Digi-Reel® | 1 | $ 1.39 | ||
| 10 | $ 0.88 | |||
| 100 | $ 0.58 | |||
| 500 | $ 0.45 | |||
| 1000 | $ 0.41 | |||
| 2000 | $ 0.38 | |||
| Tape & Reel (TR) | 6500 | $ 0.33 | ||
| 13000 | $ 0.31 | |||
Description
General part information
10CSH01 Series
Diode Array 1 Pair Common Cathode 100 V 5A Surface Mount TO-277, 3-PowerDFN
