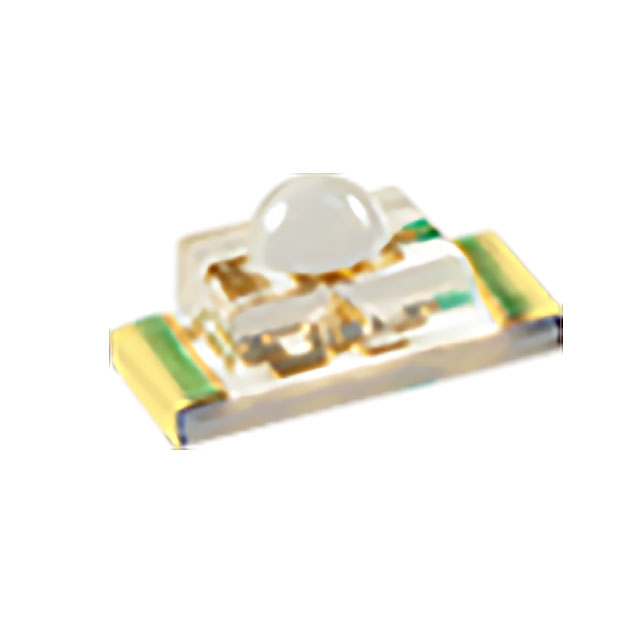

APTD2012SF4C
ActiveKingbright
INFRARED EMITTING DIODE
Deep-Dive with AI
Search across all available documentation for this part.
APTD2012SF4C
ActiveKingbright
INFRARED EMITTING DIODE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | APTD2012SF4C |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 50 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 0805 |
| Radiant Intensity (Ie) Min @ If [Min] | 0.8 mW/sr |
| Type | Infrared (IR) |
| Viewing Angle [custom] | 40 ° |
| Voltage - Forward (Vf) (Typ) | 1.3 V |
| Wavelength | 880 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.72 | |
| 10 | $ 0.50 | |||
| 100 | $ 0.37 | |||
| 500 | $ 0.30 | |||
| 1000 | $ 0.28 | |||
| Digi-Reel® | 1 | $ 0.72 | ||
| 10 | $ 0.50 | |||
| 100 | $ 0.37 | |||
| 500 | $ 0.30 | |||
| 1000 | $ 0.28 | |||
| Tape & Reel (TR) | 3000 | $ 0.26 | ||
| 6000 | $ 0.25 | |||
| 9000 | $ 0.24 | |||
| 15000 | $ 0.23 | |||
| 21000 | $ 0.23 | |||
| 30000 | $ 0.22 | |||
Description
General part information
APTD2012 Series
Infrared (IR) Emitter 880nm 1.3V 50mA 0.8mW/sr @ 20mA 40° 0805 (2012 Metric)
