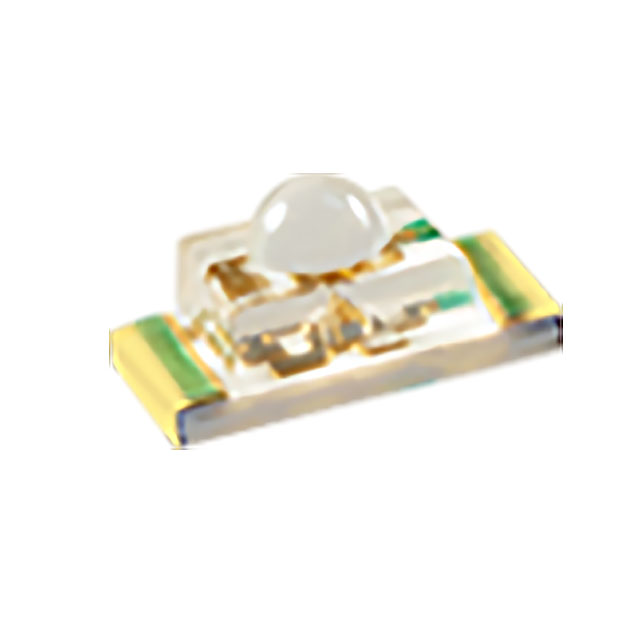

APTD2012F3C

Active

Kingbright

INFRARED EMITTING DIODE

Search across all available documentation for this part.

Active

Kingbright

INFRARED EMITTING DIODE

Technical Specifications

Parameters and characteristics for this part

Specification	APTD2012F3C

Current - DC Forward (If) (Max) [Max]	50 mA
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Top View
Package / Case	0805
Radiant Intensity (Ie) Min @ If [Min]	2 mW/sr
Type	Infrared (IR)
Viewing Angle [custom]	40 °
Wavelength	940 nm

Part	Lens Transparency	Mounting Type	Current - Test	Lens Color	Package / Case	Height (Max) [Max]	Wavelength - Peak	Lens Style	Viewing Angle	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Color	Configuration	Millicandela Rating	Wavelength - Dominant	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Radiant Intensity (Ie) Min @ If [Min]	Current - DC Forward (If) (Max) [Max]	Orientation	Viewing Angle [custom]	Wavelength	Type
Kingbright APTD2012LQBC/D	Clear	Surface Mount	2 mA	Colorless	0805	1.15 mm	460 nm	Round with Domed Top	30 °	2012	2.65 V	Blue	Standard	50 mcd	465 nm	2 mm	1.25 mm
Kingbright APTD2012F3C		Surface Mount			0805													85 °C	-40 °C	2 mW/sr	50 mA	Top View	40 °	940 nm	Infrared (IR)
Kingbright APTD2012SF4C		Surface Mount			0805						1.3 V							85 °C	-40 °C	0.8 mW/sr	50 mA	Top View	40 °	880 nm	Infrared (IR)
Kingbright APTD2012LCGCK	Clear	Surface Mount	2 mA	Colorless	0805	1.15 mm		Round with Domed Top		2012	1.9 V	Green	Standard	40 mcd	570 nm	2 mm	1.25 mm						40 °
Kingbright APTD2012LZGCK	Clear	Surface Mount	2 mA	Colorless	0805	1.15 mm	515 nm	Round with Domed Top	30 °	2012	2.65 V	Green	Standard	440 mcd	525 nm	2 mm	1.25 mm
Kingbright APTD2012LSYCK	Clear	Surface Mount	2 mA	Colorless	0805	1.15 mm	590 nm	Round with Domed Top		2012	1.85 V	Yellow	Standard	90 mcd	590 nm	2 mm	1.25 mm						40 °
Kingbright APTD2012LSURCK	Clear	Surface Mount	2 mA	Colorless	0805	1.15 mm	645 nm	Round with Domed Top		2012	1.75 V	Red	Standard	150 mcd	630 nm	2 mm	1.25 mm						40 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 940nm 1.2V 50mA 2mW/sr @ 20mA 40° 0805 (2012 Metric)
