R41-A901B

Obsolete

Mitsumi Electric Company Ltd

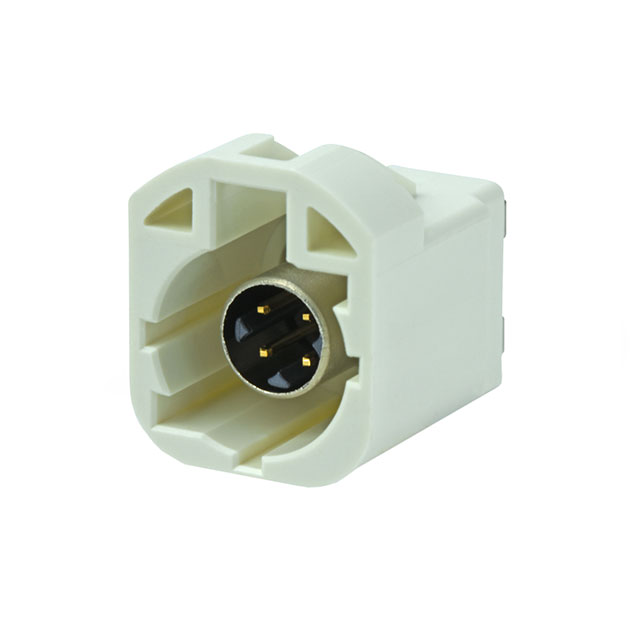

CONN HSD 4+2 NORMAL VERTICAL TYP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

R41-A901B

Obsolete

Mitsumi Electric Company Ltd

CONN HSD 4+2 NORMAL VERTICAL TYP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R41-A901B

Center Contact Material	Copper Alloy
Connector Style	Quadraxial, Fakra, HSD®
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Liquid Crystal Polymer (LCP)
Fastening Type	Latch Lock
Features	Code B, Board Guide
Frequency - Max [Max]	2 GHz
Housing Color	Cream
Impedance	100 Ohms
Mating Cycles	25
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder
Voltage Rating	100 V

R41-A Series

Part	Dielectric Material	Connector Style	Features	Connector Type	Housing Color	Center Contact Material	Mating Cycles	Voltage Rating	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Mounting Type	Impedance	Fastening Type	Frequency - Max [Max]	Shield Termination
Mitsumi Electric Company Ltd R41-A624A	Liquid Crystal Polymer (LCP)	Fakra HSD® Quadraxial	Board Guide Code A	Male Pin Plug	Black Jet	Copper Alloy	25	100 V	1	-40 °C	105 ░C	Solder	Through Hole	100 Ohms	Latch Lock	2 GHz	Solder
Mitsumi Electric Company Ltd R41-A624C	Liquid Crystal Polymer (LCP)	Fakra HSD® Quadraxial	Board Guide Code C	Male Pin Plug	Blue Signal	Copper Alloy	25	100 V	1	-40 °C	105 ░C	Solder	Through Hole	100 Ohms	Latch Lock	2 GHz	Solder
Mitsumi Electric Company Ltd R41-A717D	Liquid Crystal Polymer (LCP)	Fakra HSD® Quadraxial	Board Guide Code D	Male Pin Plug	Claret Violet	Copper Alloy	25	100 V	1	-40 °C	105 ░C	Solder	Through Hole	100 Ohms	Latch Lock	2 GHz	Solder
Mitsumi Electric Company Ltd R41-A717Z	Liquid Crystal Polymer (LCP)	Fakra HSD® Quadraxial	Board Guide Code Z	Male Pin Plug		Copper Alloy	25	100 V	1	-40 °C	105 ░C	Solder	Through Hole	100 Ohms	Latch Lock	2 GHz	Solder
Mitsumi Electric Company Ltd R41-A717A	Liquid Crystal Polymer (LCP)	Fakra HSD® Quadraxial	Board Guide Code A	Male Pin Plug	Black Jet	Copper Alloy	25	100 V	1	-40 °C	105 ░C	Solder	Through Hole	100 Ohms	Latch Lock	2 GHz	Solder
Mitsumi Electric Company Ltd R41-A901B	Liquid Crystal Polymer (LCP)	Fakra HSD® Quadraxial	Board Guide Code B	Male Pin Plug	Cream	Copper Alloy	25	100 V	1	-40 °C	105 ░C	Solder	Through Hole	100 Ohms	Latch Lock	2 GHz	Solder
Mitsumi Electric Company Ltd R41-A739K	Liquid Crystal Polymer (LCP)	Fakra HSD® Quadraxial	Board Guide Code K	Male Pin Plug	Blue Signal	Copper Alloy	25	100 V	1	-40 °C	105 ░C	Solder	Through Hole	100 Ohms	Latch Lock	2 GHz	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

R41-A Series

HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100 Ohms Through Hole Solder
