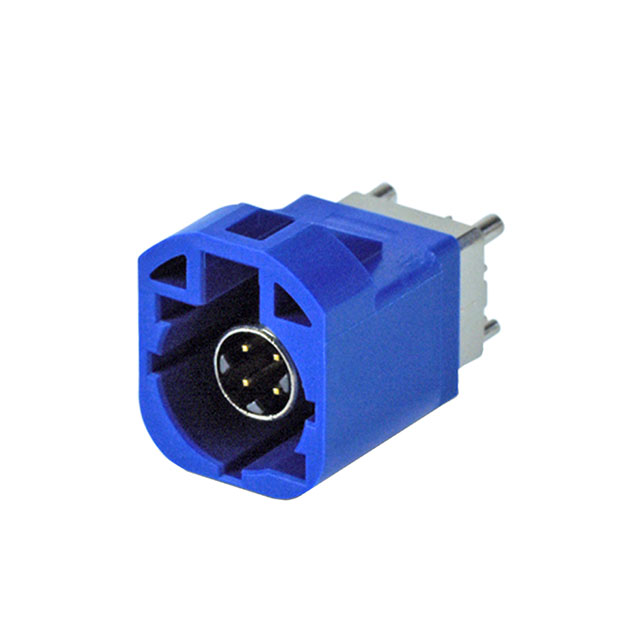

R41-A624C
ActiveMitsumi Electric Company Ltd
CONN HSD 4+0 NORMAL VERTICAL TYP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
R41-A624C
ActiveMitsumi Electric Company Ltd
CONN HSD 4+0 NORMAL VERTICAL TYP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | R41-A624C |
|---|---|
| Center Contact Material | Copper Alloy |
| Connector Style | Quadraxial, Fakra, HSD® |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Fastening Type | Latch Lock |
| Features | Code C, Board Guide |
| Frequency - Max [Max] | 2 GHz |
| Housing Color | Blue, Signal |
| Impedance | 100 Ohms |
| Mating Cycles | 25 |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
| Voltage Rating | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 6.30 | |
| 10 | $ 5.70 | |||
| 25 | $ 5.38 | |||
| 50 | $ 5.25 | |||
| Tape & Reel (TR) | 150 | $ 4.29 | ||
| 300 | $ 3.99 | |||
| 450 | $ 3.83 | |||
| 750 | $ 3.64 | |||
| 1050 | $ 3.53 | |||
| 1500 | $ 3.41 | |||
Description
General part information
R41-A Series
HSD®, Fakra, Quadraxial Connector Plug, Male Pin 100 Ohms Through Hole Solder
