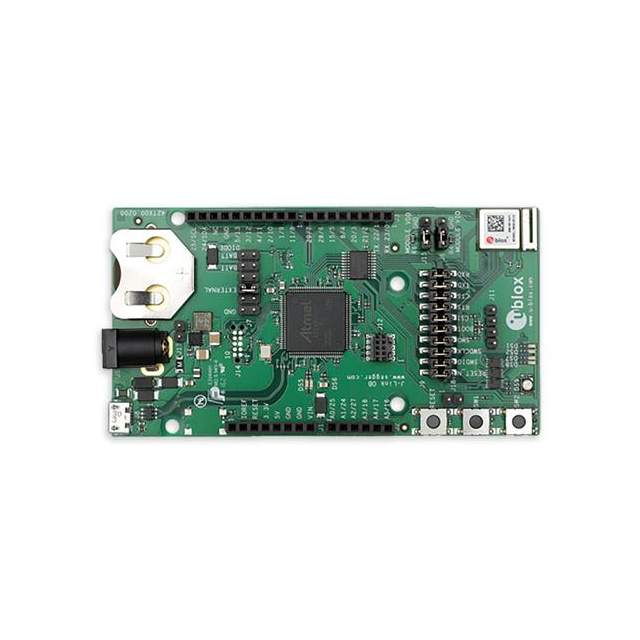

EVK-NINA-W106

Active

u-blox

EVAL KIT NINA-W10 WIFI BT4.2 MOD

Search across all available documentation for this part.

Active

u-blox

EVAL KIT NINA-W10 WIFI BT4.2 MOD

Technical Specifications

Parameters and characteristics for this part

Specification	EVK-NINA-W106

For Use With/Related Products	NINA-W106, ESP32
Frequency	2.4 GHz
Supplied Contents	Cable(s), Board(s)
Type	802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® Smart Ready 4.x Dual Mode (BLE), Transceiver

Part	Type	For Use With/Related Products	Frequency	Supplied Contents	Memory Size	Voltage - Supply [Max]	Voltage - Supply [Min]	Utilized IC / Part	Protocol	Antenna Type	Package / Case	Power - Output	Data Rate	Current - Transmitting	Serial Interfaces	RF Family/Standard	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Receiving	Modulation
u-blox EVK-NINA-W106	802.11 b/g/n (Wi-Fi WiFi WLAN) Bluetooth® Smart Ready 4.x Dual Mode (BLE) Transceiver	ESP32 NINA-W106	2.4 GHz	Board(s) Cable(s)
u-blox NINA-W106-00B			2.4 GHz		4 MB 448 kB 520 kB	3.6 V	3 V	ESP32-D0WD-V3	802.11b/g/n Bluetooth v4.2	PCB Trace	36-SMD Module	5 dBm	72 Mbps	130 mA	ADC GPIO I2C SPI UART	Bluetooth WiFi	85 °C	-40 °C	Surface Mount	95 mA	CCK DSSS GFSK OFDM QDPSK QPSK

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 99.00

General part information

ESP32, NINA-W106 NINA-W1 Transceiver; 802.11 b/g/n (Wi-Fi, WiFi, WLAN), Bluetooth® Smart Ready 4.x Dual Mode (BLE) 2.4GHz Evaluation Board
