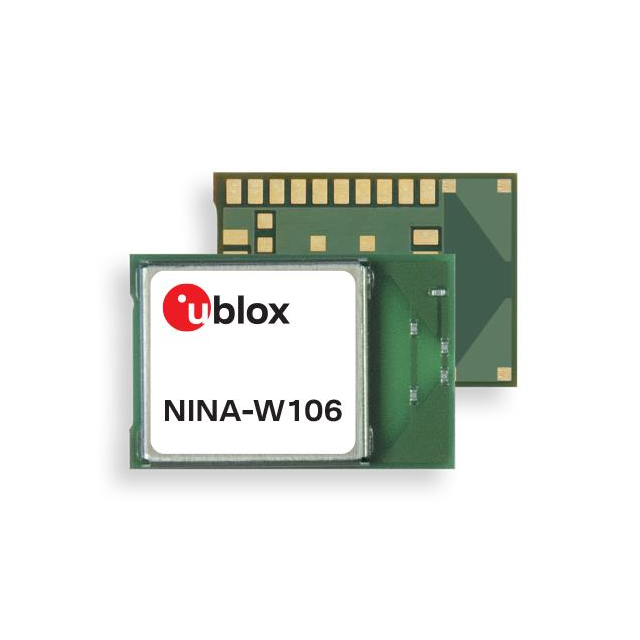

NINA-W106-00B
Activeu-blox
RF TXRX MOD BT WIFI PCB TH SMD
Deep-Dive with AI
Search across all available documentation for this part.
NINA-W106-00B
Activeu-blox
RF TXRX MOD BT WIFI PCB TH SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NINA-W106-00B |
|---|---|
| Antenna Type | PCB Trace |
| Current - Receiving | 95 mA |
| Current - Transmitting | 130 mA |
| Data Rate | 72 Mbps |
| Frequency | 2.4 GHz |
| Memory Size | 520 kB, 448 kB, 4 MB |
| Modulation | QDPSK, CCK, DSSS, GFSK, QPSK, OFDM |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 36-SMD Module |
| Power - Output | 5 dBm |
| Protocol | Bluetooth v4.2, 802.11b/g/n |
| RF Family/Standard | WiFi, Bluetooth |
| Serial Interfaces | UART, GPIO, ADC, SPI, I2C |
| Utilized IC / Part | ESP32-D0WD-V3 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.14 | |
| 10 | $ 6.50 | |||
| 50 | $ 5.98 | |||
| 100 | $ 5.92 | |||
| Digi-Reel® | 1 | $ 7.14 | ||
| 10 | $ 6.50 | |||
| 50 | $ 5.98 | |||
| 100 | $ 5.92 | |||
| Tape & Reel (TR) | 500 | $ 5.56 | ||
Description
General part information
NINA-W106 Series
Bluetooth, WiFi 802.11b/g/n, Bluetooth v4.2 Transceiver Module 2.4GHz PCB Trace Surface Mount
