G125-MH21205L2R
ActiveHarwin Inc.

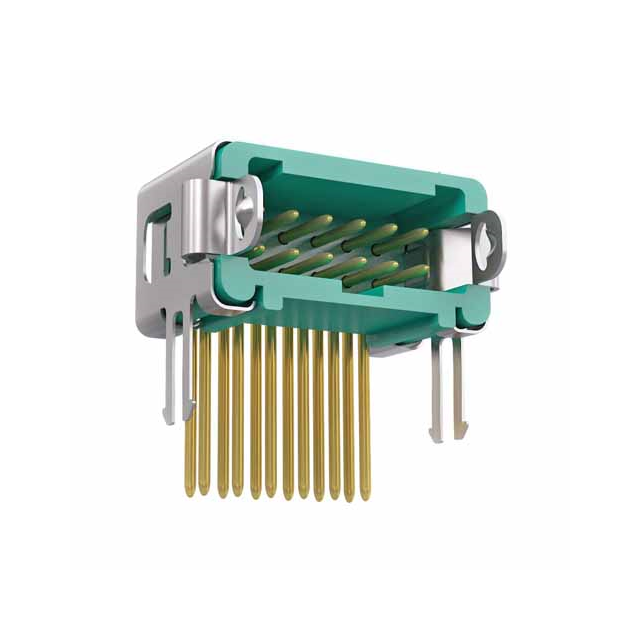

6+6 POS. MALE DIL HORIZONTAL THROUGHBOARD CONN. LATCHES (T+R) ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
G125-MH21205L2R
ActiveHarwin Inc.
6+6 POS. MALE DIL HORIZONTAL THROUGHBOARD CONN. LATCHES (T+R) ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G125-MH21205L2R |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 0.203 Ám |
| Contact Finish Thickness - Mating | 8 Áin |
| Contact Finish Thickness - Post | 8 µin |
| Contact Finish Thickness - Post | 0.203 µm |
| Contact Length - Post | 0.189 " |
| Contact Length - Post | 4.8 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2 A |
| Fastening Type | Latch Lock |
| Insulation Color | Green |
| Insulation Height | 0.218 in |
| Insulation Height | 5.55 mm |
| Insulation Material | Polyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch - Mating | 1.25 mm |
| Pitch - Mating | 0.049 in |
| Row Spacing - Mating | 0.049 in |
| Row Spacing - Mating | 1.25 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 450 VAC/DC |
G125-MH2 Series
| Part | Number of Rows | Voltage Rating | Connector Type | Contact Type | Row Spacing - Mating | Row Spacing - Mating | Style | Insulation Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Contact Material | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding | Insulation Color | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Contact Shape | Number of Positions Loaded | Material Flammability Rating | Contact Finish - Mating | Insulation Height | Insulation Height | Mounting Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions | Contact Length - Post | Contact Length - Post | Current Rating (Amps) | Features | Insulation Height [z] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | 2 | 450 VAC/DC | Header | Male Pin | 0.049 in | 1.25 mm | Board to Board Cable | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.203 Ám | 8 Áin | Solder | Phosphor Bronze | Latch Lock | -65 ░C | 150 °C | Shrouded - 4 Wall | Green | 1.25 mm | 0.049 in | Gold | Circular | All | UL94 V-0 | Gold | 0.218 in | 5.55 mm | Through Hole Right Angle | 8 µin | 0.203 µm | 50 | 0.189 " | 4.8 mm | 2 A | |||
Harwin Inc. | 2 | Header | Male Pin | 0.049 in | 1.25 mm | Board to Board Cable | Glass Filled Nylon Polyamide (PA) | Solder | Phosphor Bronze | Latch Lock | -65 ░C | 150 °C | Shrouded - 4 Wall | Green | 1.25 mm | 0.049 in | Gold | Circular | All | UL94 V-0 | Gold | 0.217 " | 5.5 mm | Through Hole | 34 | 0.185 in | 4.7 mm | 2.8 A | ||||||||
Harwin Inc. | 2 | 250 VDC | Header | Male Pin | 0.049 in | 1.25 mm | Board to Board Cable | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.203 Ám | 8 Áin | Solder | Phosphor Bronze | Latch Holder | -65 ░C | 150 °C | Shrouded - 4 Wall | Green | 1.25 mm | 0.049 in | Circular | All | UL94 V-0 | Gold | 5.56 mm | Through Hole Right Angle | 20 | 0.189 " | 4.8 mm | 2 A | Solder Retention | 0.219 in | |||||
Harwin Inc. | 2 | 450 VAC/DC | Header | Male Pin | 0.049 in | 1.25 mm | Board to Board Cable | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.203 Ám | 8 Áin | Solder | Phosphor Bronze | Latch Lock | -65 ░C | 150 °C | Shrouded - 4 Wall | Green | 1.25 mm | 0.049 in | Gold | Circular | All | UL94 V-0 | Gold | 0.218 in | 5.55 mm | Through Hole Right Angle | 8 µin | 0.203 µm | 0.189 " | 4.8 mm | 2 A | 16 | |||
Harwin Inc. | 2 | 450 VAC/DC | Header | Male Pin | 0.049 in | 1.25 mm | Board to Board Cable | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.203 Ám | 8 Áin | Solder | Phosphor Bronze | Latch Lock | -65 ░C | 150 °C | Shrouded - 4 Wall | Green | 1.25 mm | 0.049 in | Gold | Circular | All | UL94 V-0 | Gold | 0.218 in | 5.55 mm | Through Hole Right Angle | 8 µin | 0.203 µm | 10 | 0.189 " | 4.8 mm | 2 A | |||
Harwin Inc. | 2 | 450 VAC/DC | Header | Male Pin | 0.049 in | 1.25 mm | Board to Board Cable | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.203 Ám | 8 Áin | Solder | Phosphor Bronze | Latch Lock | -65 ░C | 150 °C | Shrouded - 4 Wall | Green | 1.25 mm | 0.049 in | Gold | Circular | All | UL94 V-0 | Gold | 0.218 in | 5.55 mm | Through Hole Right Angle | 8 µin | 0.203 µm | 6 | 0.189 " | 4.8 mm | 2 A | |||
Harwin Inc. | 2 | 450 VAC/DC | Header | Male Pin | 0.049 in | 1.25 mm | Board to Board Cable | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.203 Ám | 8 Áin | Solder | Phosphor Bronze | Latch Lock | -65 ░C | 150 °C | Shrouded - 4 Wall | Green | 1.25 mm | 0.049 in | Gold | Circular | All | UL94 V-0 | Gold | 0.218 in | 5.55 mm | Through Hole Right Angle | 8 µin | 0.203 µm | 12 | 0.189 " | 4.8 mm | 2 A | |||
Harwin Inc. | 2 | 450 VAC/DC | Header | Male Pin | 0.049 in | 1.25 mm | Board to Board Cable | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.203 Ám | 8 Áin | Solder | Phosphor Bronze | Latch Lock | -65 ░C | 150 °C | Shrouded - 4 Wall | Green | 1.25 mm | 0.049 in | Gold | Circular | All | UL94 V-0 | Gold | 0.218 in | 5.55 mm | Through Hole Right Angle | 8 µin | 0.203 µm | 12 | 0.189 " | 4.8 mm | 2 A | |||
Harwin Inc. | 2 | 450 VAC/DC | Header | Male Pin | 0.049 in | 1.25 mm | Board to Board Cable | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.203 Ám | 8 Áin | Solder | Phosphor Bronze | Latch Lock | -65 ░C | 150 °C | Shrouded - 4 Wall | Green | 1.25 mm | 0.049 in | Gold | Circular | All | UL94 V-0 | Gold | 0.218 in | 5.55 mm | Through Hole Right Angle | 8 µin | 0.203 µm | 12 | 0.189 " | 4.8 mm | 2 A | Solder Retention | ||
Harwin Inc. | 2 | 450 VAC/DC | Header | Male Pin | 0.049 in | 1.25 mm | Board to Board Cable | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.203 Ám | 8 Áin | Solder | Phosphor Bronze | Latch Lock | -65 ░C | 150 °C | Shrouded - 4 Wall | Green | 1.25 mm | 0.049 in | Gold | Circular | All | UL94 V-0 | Gold | 0.218 in | 5.55 mm | Through Hole Right Angle | 8 µin | 0.203 µm | 6 | 0.189 " | 4.8 mm | 2 A | Solder Retention |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
G125-MH2 Series
Connector Header Through Hole, Right Angle 12 position 0.049" (1.25mm)
